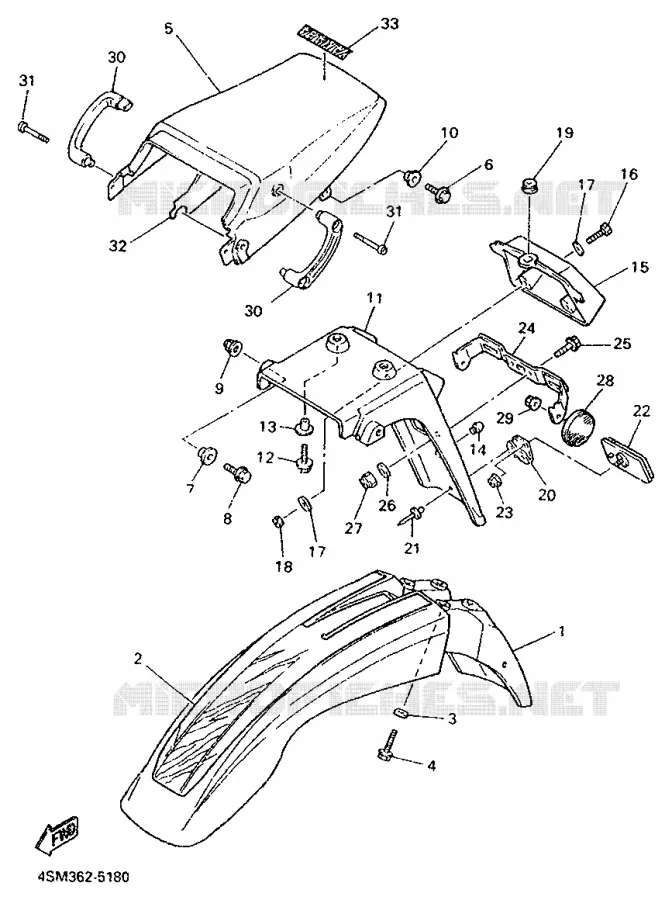

FENDER FOR YAMAHA XT500E 1996

SIDE COVER - OIL TANK

FENDER, FRONT

3RW215116000 3RW215116000

£179,94

Unit Price Incl. Tax

FENDER, FRONT

3RW215117000 3RW215117000

Not available

GARDE BOUE AV

3RW215119000 3RW215119000

Not available

.GRAPHIQUE 1

4PT215691000 4PT215691000

Not available

.GRAPHIQUE 1

4PT215692000 4PT215692000

Not available

.GRAPHIQUE 1

4PT215690000 4PT215690000

COLLAR

903870668100

903870685700

£1,06

Unit Price Incl. Tax

BOLT, HEXAGON

901190609700

970170602500

£1,24

Unit Price Incl. Tax

FENDER, REAR

4PT216110000 4PT216110000

Not available

GARDE BOUE AR

4PT216111000 4PT216111000

Not available

GARDE BOUE AR

4PT216112000 4PT216112000

Not available

BOLT, WASHER BASED(JA9)

950270601600

901050669600

£2,41

Unit Price Incl. Tax

COLLAR

90387064J100

903870610700

£5,42

Unit Price Incl. Tax

BOLT, WITH WASHER(55K)

901190622800

901190611400

£0,77

Unit Price Incl. Tax

NUT, CROWN(2GM)

901760606500 901760606500

£1,49

Unit Price Incl. Tax

COLLAR

903870602200

903870610600

£1,31

Unit Price Incl. Tax

BRACKET, LICENSE

2KF216850100 2KF216850100

Not available

BOLT, WITH WASHER

901190606000

901190622600

£2,45

Unit Price Incl. Tax

COLLAR

90387066M300

903870604300

£0,72

Unit Price Incl. Tax

DAMPER 2

42U216390000 42U216390000

£24,25

Unit Price Incl. Tax

COVER, REAR FENDER 1

4PT2163A0000

4PT2163A0100

£25,16

Unit Price Incl. Tax

BOLT, HEXAGON

970070602500

970170602500

£1,24

Unit Price Incl. Tax

WASHER, PLATE

90201065F300

902010602000

£2,64

Unit Price Incl. Tax

NUT, SELF-LOCKING

956170610000 956170610000

£3,71

Unit Price Incl. Tax

GROMMET

904801339800

904801301400

£1,98

Unit Price Incl. Tax

BRACKET, REFLECTOR 1

33G851320200 33G851320200

£8,71

Unit Price Incl. Tax

RIVET, BLIND (8V0)

902674011000 902674011000

£1,54

Unit Price Incl. Tax

REFLECTOR

3Y6851300200 3Y6851300200

£18,44

Unit Price Incl. Tax

NUT, FLANGE(3GM)

957070550000 957070550000

£1,01

Unit Price Incl. Tax

SUPPORT, PLAQUE D IMMATRIC

4BW847510000 4BW847510000

Not available

WASHER, PLATE

90201065F300

902010602000

£2,64

Unit Price Incl. Tax

WASHER, PLATE

90201065F300

902010602000

£2,64

Unit Price Incl. Tax

NUT(6TA)

953170660000 953170660000

£0,52

Unit Price Incl. Tax

FRONT REFLECTOR ASSY

23V851100000 23V851100000

£14,02

Unit Price Incl. Tax

NUT, FLANGE(3GM)

957070550000 957070550000

£1,01

Unit Price Incl. Tax

STAY 1

3TB2164F0100

Not available

BOLT, BUTTON

920170805000 920170805000

£3,95

Unit Price Incl. Tax

INSULATOR, SIDE COVER 2

4PT2174T0000 4PT2174T0000

Not available

EMBLEM, YAMAHA

992460008000 992460008000

£20,16

Unit Price Incl. Tax

EMBLEM, YAMAHA

992470008000 992470008000

£16,28

Unit Price Incl. Tax

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the FENDER of your Yamaha XT500E of 1996. Let us know if you have any questions.
