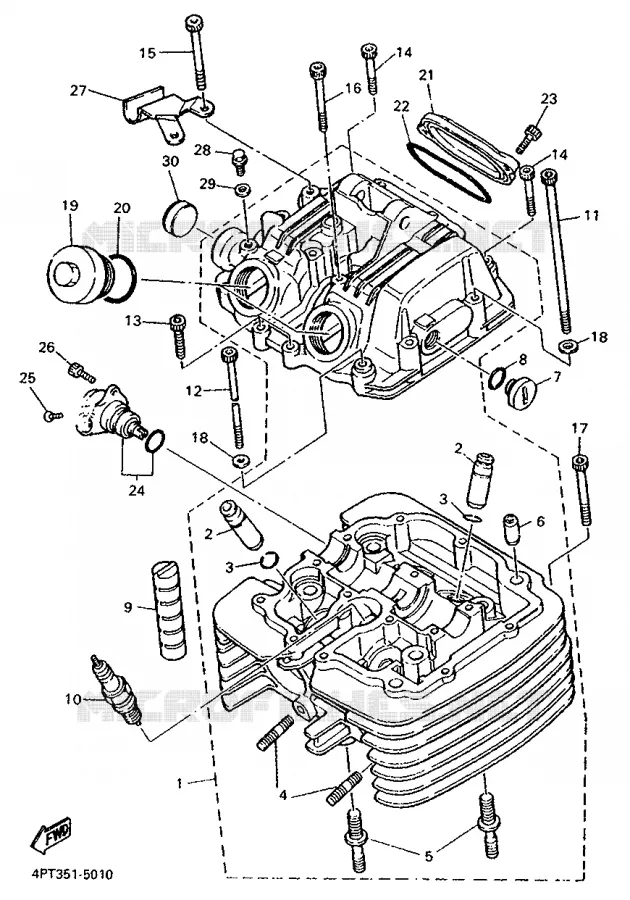

CYLINDER HEAD FOR YAMAHA XT500E 1996

CYLINDER

JEU DE CULASSE

3WS111010100 3WS111010100

Not available

GUIDE, INTAKE VALVE

4H7111331000

4H7111331100

£66,60

Unit Price Incl. Tax

CIRCLIP (1L9)

934401205200 934401205200

£1,49

Unit Price Incl. Tax

BOLT, STUD(1JK)

901160647500 901160647500

£4,16

Unit Price Incl. Tax

BOLT, STUD (5Y1)

901161037800 901161037800

Not available

PIN, DOWEL(2VG)

995301011600 995301011600

£1,19

Unit Price Incl. Tax

PLUG, STRAIGHT SCREW (5H0)

903401406800 903401406800

£14,54

Unit Price Incl. Tax

O-RING(36Y)

932101365700 932101365700

£1,21

Unit Price Incl. Tax

ABSORBER

583111270000 583111270000

£3,71

Unit Price Incl. Tax

PLUG, SPARK (DPR8EA-9)

947010024100 947010024100

£4,43

Unit Price Incl. Tax

BOLT, SOCKET

913170612500 913170612500

£10,85

Unit Price Incl. Tax

BOLT, SOCKET

913170611500 913170611500

£10,43

Unit Price Incl. Tax

BOLT, SOCKET

913170602500 913170602500

£1,31

Unit Price Incl. Tax

BOLT, SOCKET

913170604000 913170604000

£1,70

Unit Price Incl. Tax

BOLT, SOCKET

913170605500 913170605500

£3,80

Unit Price Incl. Tax

BOLT(2NX)

90109063E900 90109063E900

£4,16

Unit Price Incl. Tax

BOULON

91317063E900 91317063E900

Not available

WASHER(6TA)

929070660000 929070660000

£0,52

Unit Price Incl. Tax

COVER, CYLINDER HEAD SIDE

1L9111860000 1L9111860000

£8,05

Unit Price Incl. Tax

O-RING (341)

932103217200 932103217200

£4,19

Unit Price Incl. Tax

COVER, CYLINDER HEAD SIDE 3

5Y1111870000 5Y1111870000

Not available

O-RING (4X7)

932106244600 932106244600

£4,10

Unit Price Incl. Tax

BOLT, SOCKET

913170601800 913170601800

£1,31

Unit Price Incl. Tax

GEAR UNIT ASSY, TACHO. DRIVE

3YF178000000 3YF178000000

Not available

SCREW, FLAT

987070603000 987070603000

£0,52

Unit Price Incl. Tax

BOLT, SOCKET

913170602500 913170602500

£1,31

Unit Price Incl. Tax

CLAMP(4PT)

904622021700 904622021700

Not available

BOLT (583 TACHOMETER)

901090641800 901090641800

£2,35

Unit Price Incl. Tax

GASKET 256113960000

904300601400 904300601400

£1,93

Unit Price Incl. Tax

PLUG(3AJ)

903382220700 903382220700

£6,17

Unit Price Incl. Tax

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the CYLINDER HEAD of your Yamaha XT500E of 1996. Let us know if you have any questions.
