CYLINDER

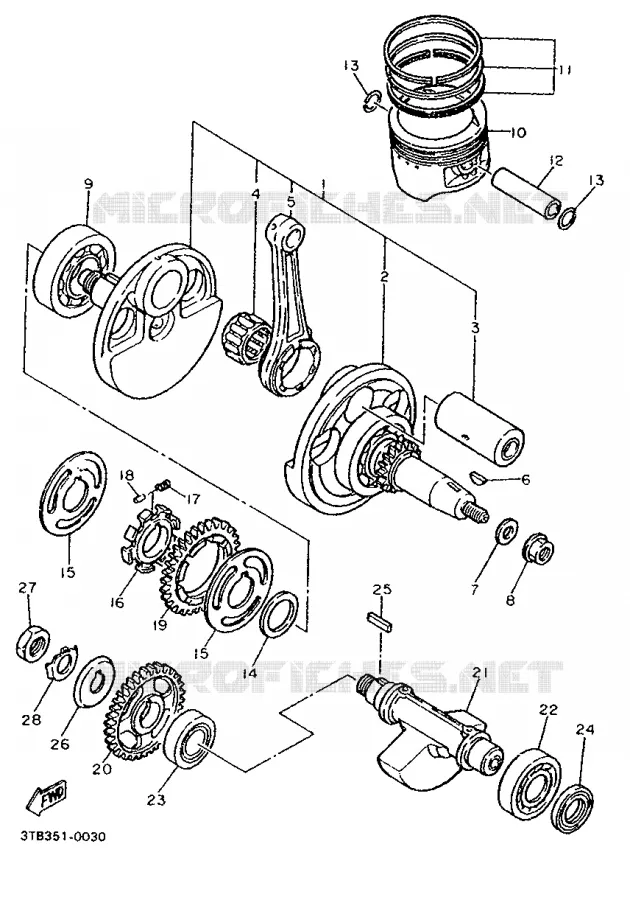

CRANKSHAFT / PISTON FOR YAMAHA XT500E 1996

VALVE

VILEBREQUIN COMPLET

3TB114000000 3TB114000000

Not available

.MASSOLOTTE DE VILEBREQUIN 1

1VJW11410000 1VJW11410000

Not available

PIN, CRANK 1

1VJ116810000 1VJ116810000

£74,87

Unit Price Incl. Tax

BEARING, CYLINDRICAL (3TB)

93310635D400 93310635D400

£88,44

Unit Price Incl. Tax

ROD, CONNECTING

3TB116510000 3TB116510000

£128,75

Unit Price Incl. Tax

KEY, WOODRUFF

902801605300

902800500100

£8,71

Unit Price Incl. Tax

NUT(2HR)

901791431700

901791454100

£32,54

Unit Price Incl. Tax

BEARING (3GV)

933063070200 933063070200

£80,94

Unit Price Incl. Tax

PISTON (STD)

55A11631001X 55A11631001X

Not available

PISTON (0.50MM 0/S)

55A116360100 55A116360100

Not available

PISTON RING SET

583116100200 583116100200

£47,75

Unit Price Incl. Tax

PISTON RING SET (2ND O/S)

583116102200 583116102200

£47,75

Unit Price Incl. Tax

PISTON RING SET (4TH O/S)

583116104200 583116104200

Not available

PIN, PISTON

55A116330000 55A116330000

Not available

CIRCLIP 256116340000

934502402800 934502402800

£2,09

Unit Price Incl. Tax

WASHER, PLATE (5Y1)

90201301F400 90201301F400

£8,71

Unit Price Incl. Tax

WASHER, BEARING COVER

34K115650200 34K115650200

Not available

BOSSAGE, TAMPON

5Y1114960100 5Y1114960100

Not available

SPRING, COMPRESSION (5Y1)

905012272100 905012272100

£3,38

Unit Price Incl. Tax

PIN, DOWEL

936051009000 936051009000

£2,64

Unit Price Incl. Tax

PIGNON SECONDAIRE

2JT115360000 2JT115360000

Not available

GEAR, BALANCE WT 44T

5Y1115310000 5Y1115310000

Not available

WEIGHT 1

34K114540000 34K114540000

Not available

BEARING (3Y1)

933063052500 933063052500

£32,02

Unit Price Incl. Tax

BEARING(3RR)

933063056000 933063056000

£67,22

Unit Price Incl. Tax

OIL SEAL (5Y1)

931012510600 931012510600

£6,73

Unit Price Incl. Tax

KEY, STRAIGHT(34K)

902820501300

902820506500

£2,64

Unit Price Incl. Tax

PLATE, BREATHER 2

34K111450000 34K111450000

Not available

NUT(24V)

901701634300 901701634300

£7,62

Unit Price Incl. Tax

WASHER, LOCK(24V)

902151624200 902151624200

£3,98

Unit Price Incl. Tax

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the CRANKSHAFT / PISTON of your Yamaha XT500E of 1996. Let us know if you have any questions.
