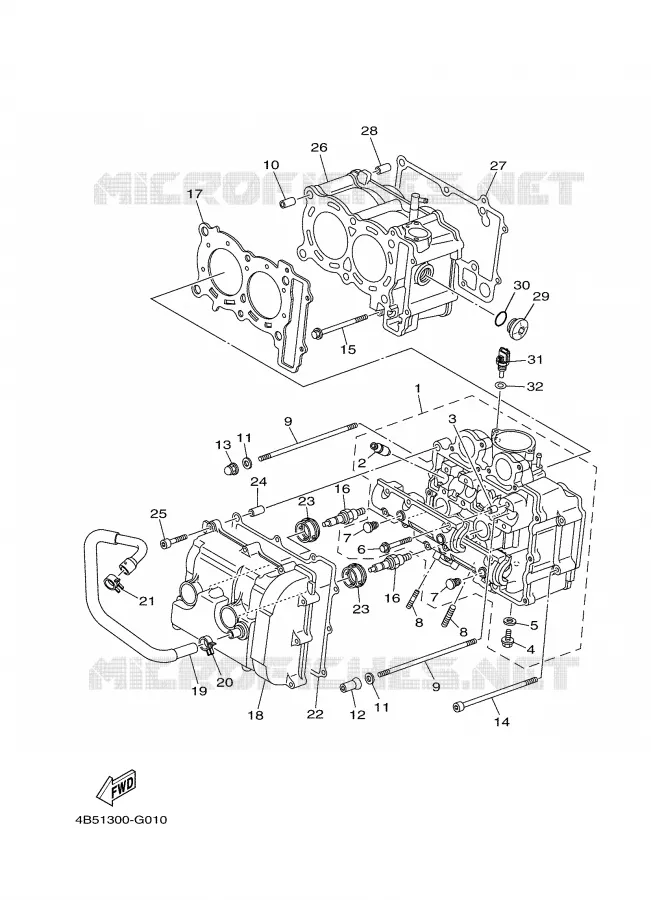

CYLINDER FOR YAMAHA XP500 2008

CRANKSHAFT / PISTON

CYLINDER HEAD ASSY

4B5111010100

4B5111010900

£1 146,34

Unit Price Incl. Tax

GUIDE, VALVE 1

5GJ111331000 5GJ111331000

£52,22

Unit Price Incl. Tax

PIN, DOWEL(3XW)

918081602300 918081602300

£1,33

Unit Price Incl. Tax

BOLT, FLANGE

950220801200 950220801200

£0,72

Unit Price Incl. Tax

WASHER, PLATE 3411117500

904300811900

902010808700

£2,35

Unit Price Incl. Tax

BOLT, WASHER BASED

901050602600 901050602600

£1,31

Unit Price Incl. Tax

PLUG (1HX)

903380817400 903380817400

£3,71

Unit Price Incl. Tax

BOLT, STUD

956120862000 956120862000

£1,90

Unit Price Incl. Tax

BOLT, STUD(4JH)

901160958400 901160958400

£8,26

Unit Price Incl. Tax

PIN, DOWEL(4XL)

936121625400 936121625400

£5,14

Unit Price Incl. Tax

WASHER, PLATE(3TJ)

90201090P400 90201090P400

£2,64

Unit Price Incl. Tax

NUT (3TJ1)

901790961200 901790961200

£8,74

Unit Price Incl. Tax

NUT

901790900300 901790900300

Not available

BOLT, HEXAGON SOCKET HEAD

901100602100 901100602100

£9,91

Unit Price Incl. Tax

BOLT, FLANGE

950220608500 950220608500

£1,49

Unit Price Incl. Tax

PLUG, SPARK (CR7E)

947010035300 947010035300

£9,59

Unit Price Incl. Tax

GASKET, CYLINDER HEAD 1

5GJ111810000 5GJ111810000

£88,01

Unit Price Incl. Tax

COVER, CYLINDER HEAD 1

15B111900000 15B111900000

Not available

PIPE, BREATHER 1

4B5111660000

4B5111661000

£40,49

Unit Price Incl. Tax

CLIP(3YX)

904671313300 904671313300

£2,35

Unit Price Incl. Tax

CLIP

904671618100 904671618100

£2,64

Unit Price Incl. Tax

GASKET, HEAD COVER 1

5GJ111930100 5GJ111930100

£54,53

Unit Price Incl. Tax

GASKET

5GJ111950000 5GJ111950000

£3,77

Unit Price Incl. Tax

PIN, DOWEL(2VG)

995301011600 995301011600

£1,19

Unit Price Incl. Tax

BOLT(J17)

913120603500 913120603500

£1,76

Unit Price Incl. Tax

CYLINDER

15BW11310000 15BW11310000

£1 287,97

Unit Price Incl. Tax

GASKET, CYLINDER

5GJ113510100

5GJ113510200

£22,04

Unit Price Incl. Tax

PIN, DOWEL(4XL)

936121625400 936121625400

£5,14

Unit Price Incl. Tax

PLUG

4H7151890000 4H7151890000

£20,10

Unit Price Incl. Tax

O-RING (25G)

932102238200

932102057300

£2,66

Unit Price Incl. Tax

THERMOSENSOR ASSY

5PS857900000 5PS857900000

£73,07

Unit Price Incl. Tax

GASKET(2GH)

904301220200 904301220200

£1,87

Unit Price Incl. Tax

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
