COVER - ENGINE 1

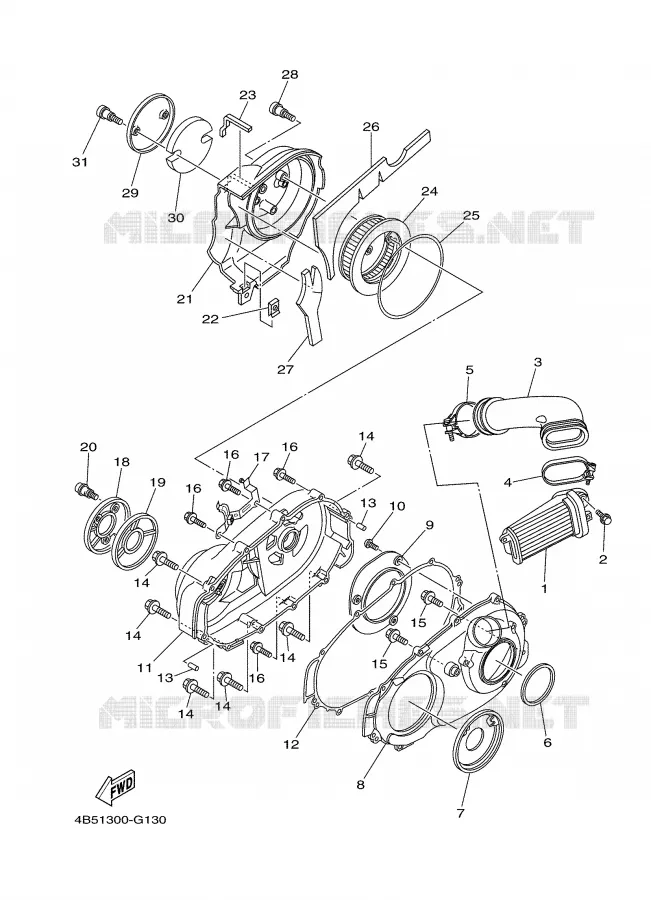

COVER - ENGINE 2 FOR YAMAHA XP500 2008

STARTER MOTOR

ELEMENT 1

4B5154070000 4B5154070000

£31,38

Unit Price Incl. Tax

BOLT, FLANGE

958220602000

958170602000

£0,92

Unit Price Incl. Tax

DUCT, AIR

4B5154730000 4B5154730000

£48,08

Unit Price Incl. Tax

HOSE CLAMP ASSY

904500100100 904500100100

£21,96

Unit Price Incl. Tax

HOSE CLAMP ASSY

904507200500

904507200300

£11,94

Unit Price Incl. Tax

SEAL, AIR DUCT

5GJ154740000 5GJ154740000

£13,27

Unit Price Incl. Tax

PLATE

15B151910000

15B151910100

£35,74

Unit Price Incl. Tax

COVER, CRANKCASE 3

5GJ154310000 5GJ154310000

Not available

PLATE

5GJ151130000

5GJ151130100

£39,06

Unit Price Incl. Tax

BOLT, BUTTON HEAD

920120601400 920120601400

£0,72

Unit Price Incl. Tax

COVER, CRANKCASE 2

5GJ154210100 5GJ154210100

£458,36

Unit Price Incl. Tax

GASKET, CRANKCASE COVER 2

5GJ154610100

5GJ154610200

£20,08

Unit Price Incl. Tax

994800802000 994800802000

£8,08

Unit Price Incl. Tax

BOLT, FLANGE

950220804000 950220804000

£2,27

Unit Price Incl. Tax

BOLT, FLANGE

950220802500 950220802500

£0,86

Unit Price Incl. Tax

BOLT, FLANGE

950220603500 950220603500

£0,58

Unit Price Incl. Tax

GUIDE, CABLE

4B5262790000

4B5262790100

£34,63

Unit Price Incl. Tax

COVER

4B5154920000 4B5154920000

£16,98

Unit Price Incl. Tax

DAMPER 1

5GJ1542A0000 5GJ1542A0000

£10,94

Unit Price Incl. Tax

BOLT 1

3KJ154810000 3KJ154810000

£7,00

Unit Price Incl. Tax

COVER 2

4B5154230000 4B5154230000

£47,87

Unit Price Incl. Tax

NUT, SPRING(1YT)

901830504200 901830504200

£0,49

Unit Price Incl. Tax

DAMPER

3CV283780000

3AJ283710000

£2,35

Unit Price Incl. Tax

ELEMENT 2

5GJ154080000 5GJ154080000

£25,31

Unit Price Incl. Tax

SEAL

48U144520000

51Y144620000

£7,70

Unit Price Incl. Tax

DAMPER, ENGINE MOUNT 2

4B5153260000 4B5153260000

£7,16

Unit Price Incl. Tax

DAMPER 2

5GJ1542B0000 5GJ1542B0000

£3,96

Unit Price Incl. Tax

BOLT 1

3KJ154810000 3KJ154810000

£7,00

Unit Price Incl. Tax

PROTECTOR, COVER

5GJ154991000 5GJ154991000

£93,55

Unit Price Incl. Tax

DAMPER

5GJ157890000 5GJ157890000

£7,12

Unit Price Incl. Tax

BOLT 1

3KJ154810000 3KJ154810000

£7,00

Unit Price Incl. Tax

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
