TRANSMISSION

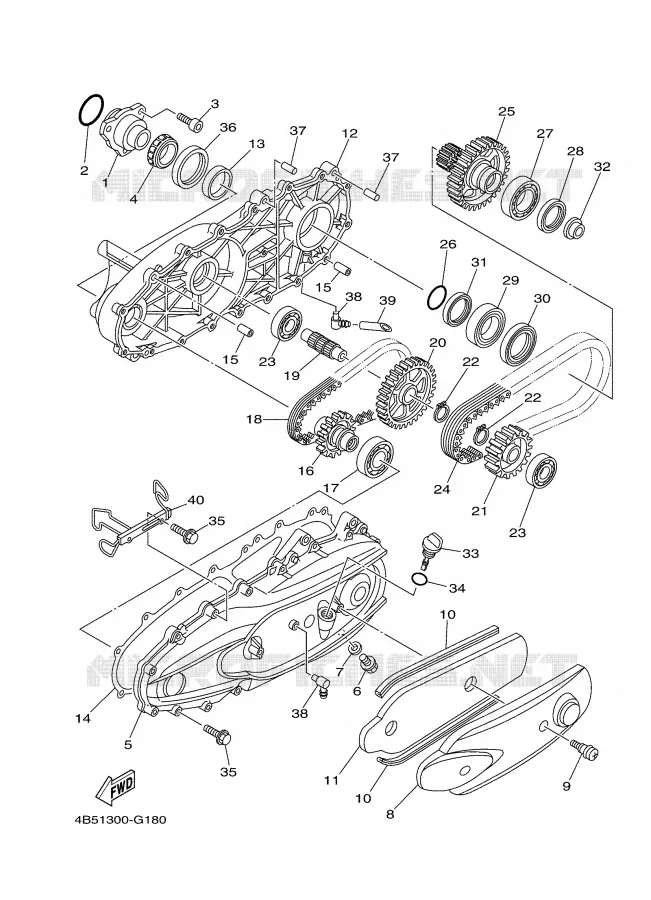

SUBTRANSMISSION FOR YAMAHA XP500 2008

FRAME

HOLDER

15B175240000 15B175240000

£148,99

Unit Price Incl. Tax

O-RING (22F)

932105055300 932105055300

£3,79

Unit Price Incl. Tax

BOLT, SOCKET

913120802000

913140802000

£2,35

Unit Price Incl. Tax

BEARING

933320008600 933320008600

£45,61

Unit Price Incl. Tax

CASE, TRANSFER 1

5GJ175411000 5GJ175411000

£453,42

Unit Price Incl. Tax

PLUG, STRAIGHT SCREW

903401200600 903401200600

£1,56

Unit Price Incl. Tax

GASKET

812111980000 812111980000

£1,96

Unit Price Incl. Tax

COVER, CHAIN CASE

5GJ154180000 5GJ154180000

£43,42

Unit Price Incl. Tax

BOLT 1

3KJ154810000 3KJ154810000

£7,00

Unit Price Incl. Tax

DAMPER 3

5GJ153350000 5GJ153350000

£4,74

Unit Price Incl. Tax

DAMPER, ENGINE MOUNT 5

5VU153380000 5VU153380000

£14,28

Unit Price Incl. Tax

CASE, TRANSFER 2

5GJ175421000 5GJ175421000

£470,35

Unit Price Incl. Tax

RETAINER, BEARING

5GJ175540000 5GJ175540000

£35,68

Unit Price Incl. Tax

GASKET

5GJ178180200 5GJ178180200

£43,55

Unit Price Incl. Tax

PIN, DOWEL(3VD)

995301011400 995301011400

£2,64

Unit Price Incl. Tax

SPROCKET, DRIVE

5GJ174510000 5GJ174510000

£87,56

Unit Price Incl. Tax

BEARING(JF7)

933062063700 933062063700

£59,38

Unit Price Incl. Tax

CHAIN, PRIMARY

5GJ161390000

5GJ161390100

£378,72

Unit Price Incl. Tax

SHAFT

5GJ175230000 5GJ175230000

£84,64

Unit Price Incl. Tax

SPROCKET, DRIVE

5GJ174520000 5GJ174520000

£69,31

Unit Price Incl. Tax

SPROCKET, DRIVE

5GJ174590000 5GJ174590000

£75,31

Unit Price Incl. Tax

CIRCLIP(JF7)

990092540000 990092540000

£1,27

Unit Price Incl. Tax

BEARING

933063042700

933063044300

£30,97

Unit Price Incl. Tax

CHAIN, PRIMARY

5GJ114560000 5GJ114560000

£496,82

Unit Price Incl. Tax

SPROCKET, DRIVE

5GJ174690000

4B5174690000

£246,58

Unit Price Incl. Tax

O-RING (21A)

932103450400

932103463300

£9,00

Unit Price Incl. Tax

BEARING

933060080700 933060080700

£67,51

Unit Price Incl. Tax

OIL SEAL

931024002100 931024002100

£12,17

Unit Price Incl. Tax

BEARING

933060080800 933060080800

£67,51

Unit Price Incl. Tax

OIL SEAL

931024800400 931024800400

£10,46

Unit Price Incl. Tax

OIL SEAL (45X56X6)

931054501700 931054501700

£13,28

Unit Price Incl. Tax

COLLAR, GUIDE

15B461530000 15B461530000

Not available

PLUG, OIL LEVEL

5GJ153620100 5GJ153620100

Not available

O-RING (646)

932101912300 932101912300

£3,83

Unit Price Incl. Tax

BOLT, FLANGE

950220603500 950220603500

£0,58

Unit Price Incl. Tax

OIL SEAL

931025500400 931025500400

£12,34

Unit Price Incl. Tax

PIN, DOWEL

936083000200 936083000200

£1,61

Unit Price Incl. Tax

BREATHER

3ES153710000 3ES153710000

£11,35

Unit Price Incl. Tax

HOSE, BREATHER 1

5GJ1531A0000 5GJ1531A0000

£3,16

Unit Price Incl. Tax

HOLDER, BRAKE HOSE

4B52587A0000

4B52587A0100

£32,17

Unit Price Incl. Tax

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
