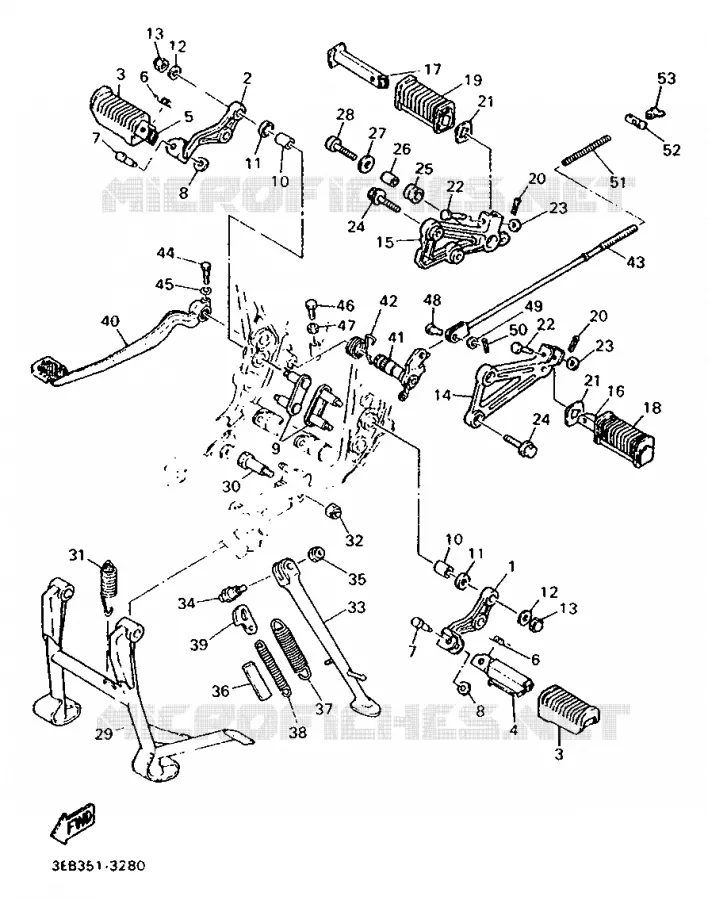

STAND / FOOTREST FOR YAMAHA SR500 1995

IGNITION

REPOSE-PIEDS 1

48U274110033 48U274110033

Not available

REPOSE-PIEDS 2

48U274210033 48U274210033

Not available

COVER, FOOTREST

4L0274230000 4L0274230000

£27,04

Unit Price Incl. Tax

REPOSE-PIEDS

3CK274510000 3CK274510000

Not available

REPOSE-PIEDS

3N6274610000 3N6274610000

Not available

SPRING, TORSION (214-27426-00)

905082002300 905082002300

£3,38

Unit Price Incl. Tax

PIN (214-27418-00)

902430800600 902430800600

£3,71

Unit Price Incl. Tax

WASHER, PLATE (214-27417-00)

902010604200 902010604200

£2,35

Unit Price Incl. Tax

BOLT, FOOTREST

2J2274160100

2J2274161000

£13,40

Unit Price Incl. Tax

DAMPER, FOOTREST

2J2274140100 2J2274140100

£7,00

Unit Price Incl. Tax

WASHER 278234480000

902091210200 902091210200

£3,71

Unit Price Incl. Tax

WASHER(6TC)

929070820000 929070820000

£0,52

Unit Price Incl. Tax

NUT, CAP

953070880000 953070880000

£1,90

Unit Price Incl. Tax

SUPPORT 2

48U274420100 48U274420100

Not available

SUPPORT 3

48U274430100 48U274430100

Not available

FOOTREST, REAR (L.H)

447274310000 447274310000

Not available

FOOTREST, REAR (R.H)

447274410000 447274410000

Not available

COVER, REAR FOOTREST (L.H)

1J7274330000 1J7274330000

Not available

COVER, REAR FOOTREST (R.H)

1J7274440000 1J7274440000

Not available

PIN, COTTER (E57)

914011602000

914901602000

£4,22

Unit Price Incl. Tax

WASHER 447274370000

902091807000 902091807000

£3,38

Unit Price Incl. Tax

PIN, CLEVIS

917010603800

917020603800

£1,54

Unit Price Incl. Tax

WASHER(6TA)

929070620000 929070620000

£0,52

Unit Price Incl. Tax

BOLT, SMALL FLANGE

901051027500

950271002500

£2,64

Unit Price Incl. Tax

DAMPER, MUFFLER BRACKET

2H7274140000 2H7274140000

£3,71

Unit Price Incl. Tax

COLLAR (2H7)

903871063600 903871063600

£8,71

Unit Price Incl. Tax

WASHER, PLATE (2H7)

902011066900 902011066900

£0,11

Unit Price Incl. Tax

BOULON, TETE HEXAGONALE CREUSE

901101006700 901101006700

Not available

STAND, MAIN

2J2271110000 2J2271110000

£214,08

Unit Price Incl. Tax

BOLT(3EB)

901091049700

90109102G900

£7,00

Unit Price Incl. Tax

SPRING, TENSION (2J2)

905064017500 905064017500

£15,90

Unit Price Incl. Tax

NUT, U

956071010000

956171010000

£3,98

Unit Price Incl. Tax

BEQUILLE, LATERALE

3EB273110000 3EB273110000

Not available

BOLT

90109103A100

901091047300

£3,98

Unit Price Incl. Tax

NUT, U

901851003700 901851003700

£3,98

Unit Price Incl. Tax

HOSE (L55)

90445266H400 90445266H400

£41,40

Unit Price Incl. Tax

SPRING, TENSION (4K0)

905062622500 905062622500

£8,16

Unit Price Incl. Tax

SPRING, TENSION (4K0)

905061822400 905061822400

£6,17

Unit Price Incl. Tax

LINK, SIDE STAND

3VD273150000 3VD273150000

£13,44

Unit Price Incl. Tax

PEDAL, BRAKE

2J2272110100

3HT272110000

£76,70

Unit Price Incl. Tax

SHAFT, BRAKE PEDAL

3H0272120000 3H0272120000

£47,66

Unit Price Incl. Tax

SPRING, TORSION (2J4)

905084038100 905084038100

£9,95

Unit Price Incl. Tax

ROD, BRAKE

3H0272310000 3H0272310000

£16,50

Unit Price Incl. Tax

BOLT (1J7)

901090646800 901090646800

£1,98

Unit Price Incl. Tax

WASHER, SPRING

929070610000 929070610000

£0,65

Unit Price Incl. Tax

BOLT, HEXAGON

970070602000

970170602000

£1,56

Unit Price Incl. Tax

NUT(JN5)

953070670000

953170670000

£0,52

Unit Price Incl. Tax

PIN (3H0)

902400806700 902400806700

£5,08

Unit Price Incl. Tax

WASHER, PLATE 1562722600

902010808300 902010808300

£2,35

Unit Price Incl. Tax

PIN, COTTER

914902002000

914902002500

£1,90

Unit Price Incl. Tax

SPRING, (180-27236-00)

905011024500 905011024500

£2,35

Unit Price Incl. Tax

PIN 1562723700

902491200800 902491200800

£3,38

Unit Price Incl. Tax

NUT (25K)

901750601300

901790641100

£1,31

Unit Price Incl. Tax

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the STAND / FOOTREST of your Yamaha SR500 of 1995. Let us know if you have any questions.
