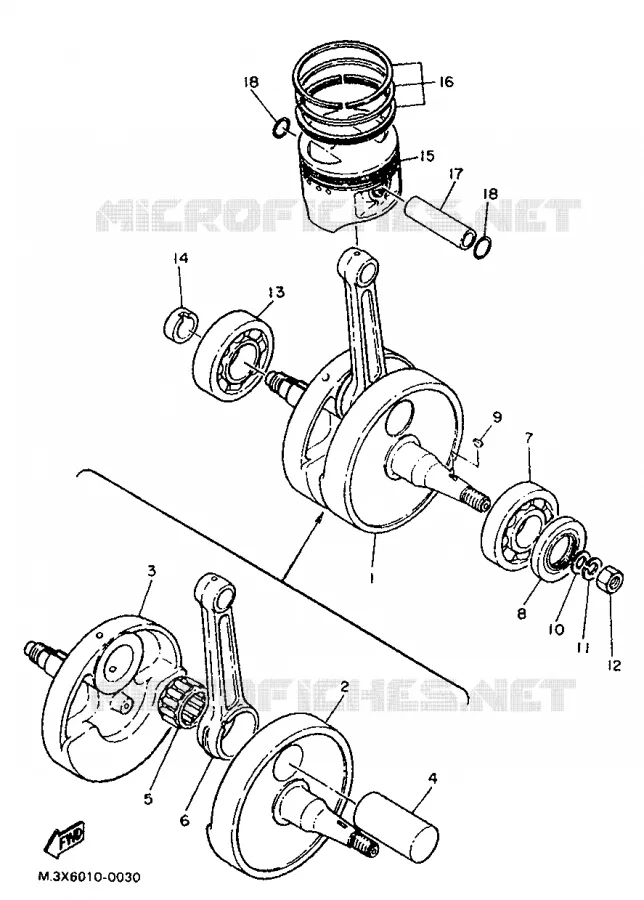

CRANKSHAFT / PISTON FOR YAMAHA SR500 1993

VALVE

(1) 583114000900

CRANKSHAFT ASSY

(2) 583-11412-00-00

.MASSOLOTTE DE VILEBREQUIN 1 MASSOLOTTE DE VILEBREQUIN 1

(3) 583-11422-00-00

.MASSOLOTTE DE VILEBREQUIN 2 MASSOLOTTE DE VILEBREQUIN 2

(4) 583116810100

PIN, CRANK 1

(5) 93310-635A5-00

BRG,CYL-CAL ROLLER 46.8G TM

(6) 583116500000

CONNECTING ROD ASSY

(7) 93306-30630-00

BEARING(3KW)

(8) 93102-30145-00

OIL SEAL (30X60X6-583)

(9) 902800500100

KEY, WOODRUFF

(10) 90201-12593-00

WASHER, PLATE (583)

(11) 929901210000

YBS67-12 WASHER,SPRING

(12) 90170-12347-00

NUT(55K)

(13) 93306-30702-00

BEARING (3GV)

(14) 90387-20644-00

COLLAR (2J2)

(15) 1E6-11631-31-97

PISTON (STD)

(15) 1E6-11636-31-00

PISTON (0.50MM O/S)

(15) 1E6-11638-31-00

PISTON (1.00MM O/S)

(16) 583-11610-02-00

PISTON RING SET

(16) 583-11610-22-00

PISTON RING SET (2ND O/S)

(16) 583-11610-42-00

PISTON RING SET (4TH O/S)

(17) 583-11633-00-00

PIN, PISTON

(18) 93450-22027-00

CIRCLIP 341116340000

	Part number	Description	Qty
# 1	583-11400-00-00 583114000000	CRANKSHAFT ASSY	Not available	£0,00
# 2	583-11412-00-00 583114120000 583114120000	.MASSOLOTTE DE VILEBREQUIN 1 MASSOLOTTE DE VILEBREQUIN 1	Not available	£0,00
# 3	583-11422-00-00 583114220000 583114220000	.MASSOLOTTE DE VILEBREQUIN 2 MASSOLOTTE DE VILEBREQUIN 2	Not available	£0,00
# 4	583-11681-00-00 583116810100 583116810000	PIN, CRANK 1	£45,84
# 5	93310-635A5-00 93310635A500 93310635A500	BRG, CYL-CAL ROLLER 46.8G TM	£40,80
# 6	583-11651-00-00 583116500000 583116510000	CONNECTING ROD ASSY	£104,69
# 7	93306-30630-00 933063063000 933063063000	BEARING(3KW)	£68,29
# 8	93102-30145-00 931023014500 931023014500	OIL SEAL (30X60X6-583)	£9,80
# 9	90280-16053-00 902800500100 902801605300	KEY, WOODRUFF	£7,76
# 10	90201-12593-00 902011259300 902011259300	WASHER, PLATE (583)	£3,55
# 11	92901-12100-00 929901210000 929011210000	YBS67-12 WASHER, SPRING	£1,56
# 12	90170-12347-00 901701234700 901701234700	NUT(55K)	£4,84
# 13	93306-30702-00 933063070200 933063070200	BEARING (3GV)	£76,87
# 14	90387-20644-00 903872064400 903872064400	COLLAR (2J2)	£16,14
# 15	1E6-11631-31-97 1E6116313197 1E6116313197	PISTON (STD)	Not available	£0,00
# 15	1E6-11636-31-00 1E6116363100 1E6116363100	PISTON (0.50MM O/S)	Not available	£0,00
# 15	1E6-11638-31-00 1E6116383100 1E6116383100	PISTON (1.00MM O/S)	Not available	£0,00
# 16	583-11610-02-00 583116100200 583116100200	PISTON RING SET	£45,35
# 16	583-11610-22-00 583116102200 583116102200	PISTON RING SET (2ND O/S)	£45,35
# 16	583-11610-42-00 583116104200 583116104200	PISTON RING SET (4TH O/S)	Not available	£0,00
# 17	583-11633-00-00 583116330000 583116330000	PIN, PISTON	£52,75
# 18	93450-22027-00 934502202700 934502202700	CIRCLIP 341116340000	£1,86

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the CRANKSHAFT / PISTON of your Yamaha SR500 of 1993. Let us know if you have any questions.
