STARTER CLUTCH

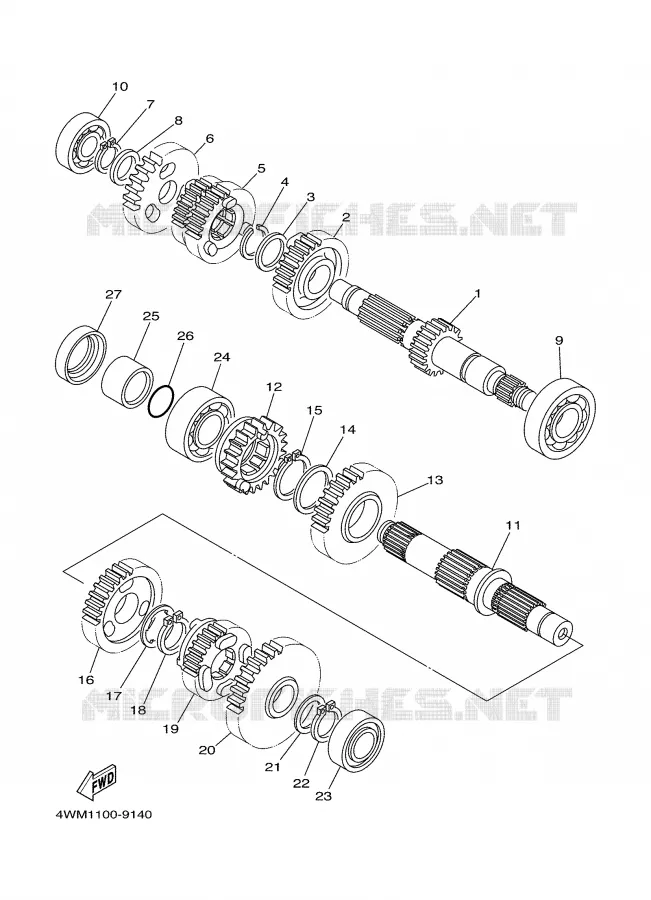

TRANSMISSION FOR YAMAHA XV1600A 1999

CROSS SHAFT

ARBRE, PRIMAIRE

4WM174110000 4WM174110000

Not available

4EME PIGNON PRIMAIRE

4NK171410100 4NK171410100

Not available

WASHER (4H7)

902092519600 902092519600

£3,65

Unit Price Incl. Tax

CIRCLIP (2H7)

934402806200 934402806200

£3,71

Unit Price Incl. Tax

GEAR, 2ND PINION

4NK171210100

Not available

GEAR, 5TH PINION

4NK171510000 4NK171510000

£133,49

Unit Price Incl. Tax

CIRCLIP (4H7)

934102305600 934102305600

£1,49

Unit Price Incl. Tax

WASHER, PLATE(1FK)

90201232K500 90201232K500

£7,31

Unit Price Incl. Tax

BEARING

933063780600 933063780600

£63,92

Unit Price Incl. Tax

BEARING

933063044100 933063044100

£43,70

Unit Price Incl. Tax

AXLE, DRIVE

4WM174210000 4WM174210000

Not available

GEAR, 5TH WHEEL

4NK172510000 4NK172510000

£133,49

Unit Price Incl. Tax

GEAR, 2ND WHEEL

4NK172210100 4NK172210100

£133,49

Unit Price Incl. Tax

WASHER (26H)

902093223100 902093223100

£4,86

Unit Price Incl. Tax

CIRCLIP (371)

934403402500 934403402500

£5,08

Unit Price Incl. Tax

GEAR, 3RD WHEEL

4NK172310100 4NK172310100

£133,49

Unit Price Incl. Tax

WASHER (3J3)

902092719200 902092719200

£3,71

Unit Price Incl. Tax

CIRCLIP (3J3)

934403007700 934403007700

£2,64

Unit Price Incl. Tax

GEAR, 4TH WHEEL

4NK172410100

4NK172410200

£193,39

Unit Price Incl. Tax

GEAR, 1ST WHEEL

4NK172110100 4NK172110100

Not available

WASHER, PLATE(1FK)

90201256K600 90201256K600

£4,16

Unit Price Incl. Tax

CIRCLIP (256)

934102501700 934102501700

£3,38

Unit Price Incl. Tax

BRG, R-B 6205DU8 52MM NK

933062055000 933062055000

£36,83

Unit Price Incl. Tax

BEARING

933052060700 933052060700

£106,09

Unit Price Incl. Tax

COLLAR

903873015P00 903873015P00

Not available

O-RING(36Y)

932103066000 932103066000

£2,66

Unit Price Incl. Tax

OIL SEAL

931033818400 931033818400

£37,98

Unit Price Incl. Tax

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the TRANSMISSION of your Yamaha XV1600A of 1999. Let us know if you have any questions.
