CRANKCASE

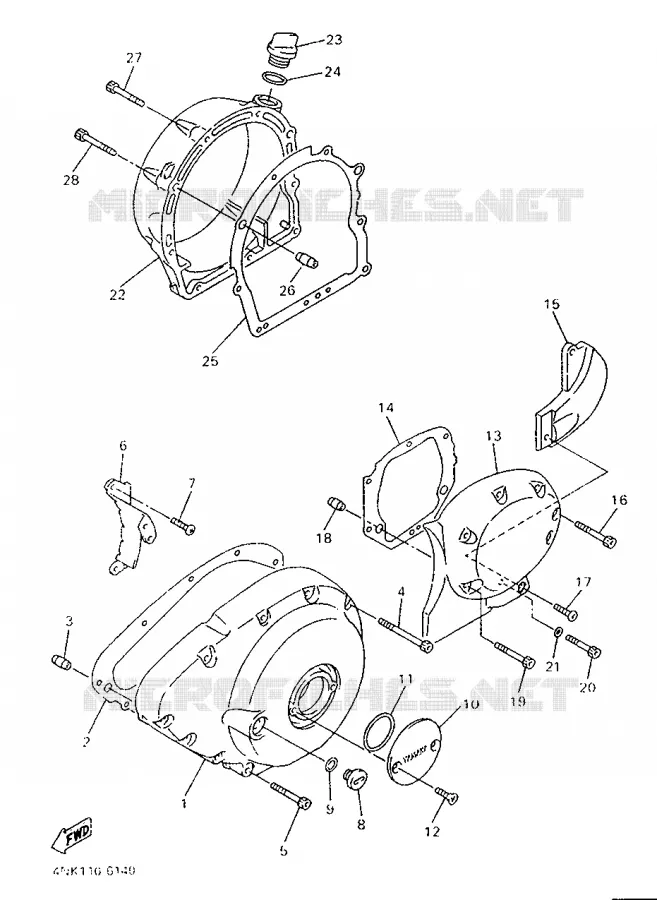

COVER - ENGINE 1 FOR YAMAHA XVZ13AH 1996

STARTER CLUTCH

COVER, CRANKCASE 1

4NK154110000 4NK154110000

Not available

GASKET, CRANKCASE COVER 1

4NK154510000 4NK154510000

£31,69

Unit Price Incl. Tax

PIN, DOWEL

995301001400 995301001400

£2,35

Unit Price Incl. Tax

BOLT, SOCKET

913140606000 913140606000

£2,64

Unit Price Incl. Tax

BOLT, SOCKET

913140604500 913140604500

£2,45

Unit Price Incl. Tax

PLAQUE

4NK151910000 4NK151910000

Not available

SCREW, PAN HEAD(3TJ)

985070601600 985070601600

£0,52

Unit Price Incl. Tax

PLUG, STRAIGHT SCREW (5H0)

903401413900

903401406800

£14,54

Unit Price Incl. Tax

O-RING (2H9)

932101436900 932101436900

£0,90

Unit Price Incl. Tax

COVER, CAP 2

4NK154270000 4NK154270000

£153,72

Unit Price Incl. Tax

O-RING (256)

932104515000 932104515000

£4,40

Unit Price Incl. Tax

SCREW, FLAT HEAD(4EM)

987040601600

987070601600

£0,52

Unit Price Incl. Tax

COVER, CRANKCASE 2

4NK154210000 4NK154210000

£177,97

Unit Price Incl. Tax

GASKET, CRANKCASE COVER 2

4NK154610000

3JP154610100

£26,12

Unit Price Incl. Tax

COVER, CARBURATOR 2

4NK154230000 4NK154230000

Not available

BOLT, SOCKET HEAD

913140602500 913140602500

£1,61

Unit Price Incl. Tax

BOLT, BUTTON HEAD(4NK)

920140601400 920140601400

£1,27

Unit Price Incl. Tax

PIN, DOWEL

995301001400 995301001400

£2,35

Unit Price Incl. Tax

BOULON

913140614500 913140614500

Not available

BOLT, SOCKET

913140603500 913140603500

£1,61

Unit Price Incl. Tax

GASKET 256113960000

904300601400 904300601400

£1,93

Unit Price Incl. Tax

COVER, CRANKCASE 3

4NK154310000 4NK154310000

£677,70

Unit Price Incl. Tax

PLUG, OIL

2H7153630000 2H7153630000

£19,55

Unit Price Incl. Tax

O-RING(1KT)

932102777800 932102777800

£5,86

Unit Price Incl. Tax

GASKET, CRANKCASE COVER 3

4NK154620000 4NK154620000

£31,69

Unit Price Incl. Tax

PIN, DOWEL

995301001400 995301001400

£2,35

Unit Price Incl. Tax

BOLT, SOCKET HEAD

913140602500 913140602500

£1,61

Unit Price Incl. Tax

BOLT, SOCKET

913140603500 913140603500

£1,61

Unit Price Incl. Tax

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the COVER - ENGINE 1 of your Yamaha XVZ13AH of 1996. Let us know if you have any questions.
