SWITCH / LEVER FOR YAMAHA WR 125 X 2009

SWITCH / LEVER for Yamaha WR 125 X 2009

(1)  22BH39720200
SWITCH HANDLE 4

(2)  5D7-H395Y-00
SCREW SWITCH FITTING Part information

(3)  5D7-H395X-00
SCREW SWITCH FITTING Part information

(4)  22BH39750200
SWITCH HANDLE 2

(5)  5D7-H395W-00
SCREW SWITCH FITTING

(5)  5D7-H395W-00
SCREW SWITCH FITTING

(6)  22BH29100100
LEVER HOLDER ASSY 1

(7)  5D7H39120100
LEVER 1

(8)  5D7-H3945-00
BOLT, LEVER

(9)  90185-06837
NUT, SELF-LOCKING

(10)  22B-H1826-00

(11)  5D7-H3951-00
BOLT, CABLE ADJUSTING

(12)  5D7-H3927-00
NUT, ADJUSTING

(13)  3YX-82917-01
SWITCH

(14)  98707-03020
SCREW, FLAT HEAD(4BP)

(15)  22B-H2926-00
SWITCH CORD
Part number Description
# 1
22B-H3972-00
22BH39720200
SWITCH HANDLE 4
# 2
SCREW SWITCH FITTING
# 3
SCREW SWITCH FITTING
# 4
22B-H3975-00
22BH39750200
SWITCH HANDLE 2
# 5
SCREW SWITCH FITTING
# 6
22B-H2910-00
22BH29100100
LEVER HOLDER ASSY 1
# 7
5D7-H3912-00
5D7H39120100
LEVER 1
# 8
BOLT, LEVER
# 9
NUT, SELF-LOCKING
# 10
BOLT
# 11
BOLT, CABLE ADJUSTING
# 12
NUT, ADJUSTING
# 13
SWITCH
# 14
SCREW, FLAT HEAD(4BP)
# 15
SWITCH CORD

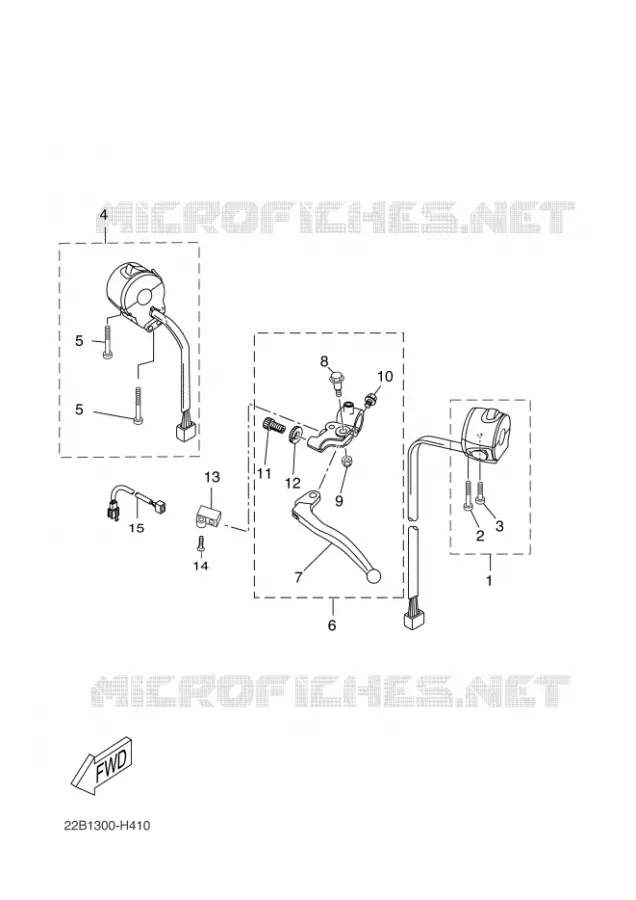

Yamaha WR125X SWITCH / LEVER parts diagram.

A part can be selected in the image screen and text screen.
Genuine parts for Yamaha WR 125 X 2009
