STARTER CLUTCH

TRANSMISSION FOR YAMAHA VMX12 1997

CROSS SHAFT

AXLE, MAIN

1FK174110000 1FK174110000

Not available

GEAR, 4TH PINION

1FK171410000 1FK171410000

£140,40

Unit Price Incl. Tax

WASHER (4H7)

902092519600 902092519600

£3,65

Unit Price Incl. Tax

CIRCLIP (2H7)

934402806200 934402806200

£3,71

Unit Price Incl. Tax

GEAR, 2ND PINION

1FK171210100 1FK171210100

Not available

GEAR, 5TH PINION

1FK171510100 1FK171510100

Not available

BEARING (26H)

933063043000 933063043000

£58,70

Unit Price Incl. Tax

BEARING (26H)

933063640100 933063640100

£88,00

Unit Price Incl. Tax

CIRCLIP (4H7)

934102305600 934102305600

£1,49

Unit Price Incl. Tax

WASHER, PLATE(1FK)

90201232K500 90201232K500

£7,31

Unit Price Incl. Tax

CIRCLIP (26H)

934405211800 934405211800

£2,35

Unit Price Incl. Tax

DRIVE AXLE ASSY

4NK174210000

4NK174020000

£174,55

Unit Price Incl. Tax

GEAR, 5TH WHEEL

1FK172510100 1FK172510100

Not available

GEAR, 2ND WHEEL

1FK172210100 1FK172210100

£141,11

Unit Price Incl. Tax

WASHER (26H)

902093223100 902093223100

£4,86

Unit Price Incl. Tax

CIRCLIP (371)

934403402500 934403402500

£5,08

Unit Price Incl. Tax

GEAR, 3RD WHEEL(31T)

26H172310100 26H172310100

£140,40

Unit Price Incl. Tax

WASHER (3J3)

902092719200 902092719200

£3,71

Unit Price Incl. Tax

CIRCLIP (3J3)

934403007700 934403007700

£2,64

Unit Price Incl. Tax

GEAR, 4TH WHEEL

1FK172410000 1FK172410000

£188,59

Unit Price Incl. Tax

GEAR, 1ST WHEEL

1FK172110000 1FK172110000

Not available

BEARING(4NK)

933062064500 933062064500

£48,66

Unit Price Incl. Tax

PLUG (26H)

903311503900 903311503900

£6,17

Unit Price Incl. Tax

BEARING (26H)

933062055500 933062055500

£38,24

Unit Price Incl. Tax

WASHER, PLATE(1FK)

90201256K500 90201256K500

£4,16

Unit Price Incl. Tax

WASHER, PLATE(1FK)

90201256K600 90201256K600

£4,16

Unit Price Incl. Tax

WASHER, PLATE(1FK)

90201256K700 90201256K700

Not available

CIRCLIP (26H)

934405211800 934405211800

£2,35

Unit Price Incl. Tax

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

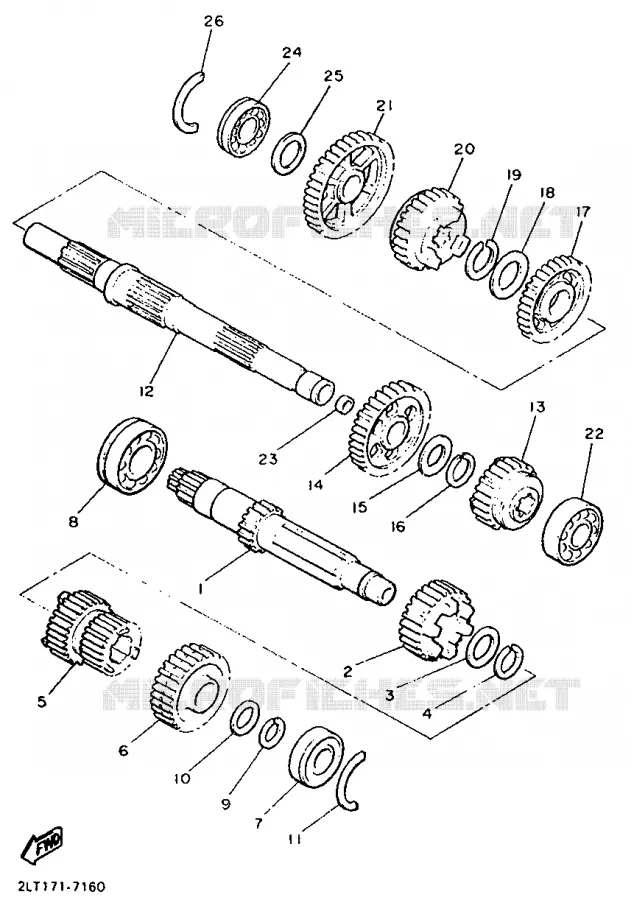

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the TRANSMISSION of your Yamaha VMX12 of 1997. Let us know if you have any questions.
