SWINGARM

FINAL DRIVE SHAFT / GEAR COUPLING FOR YAMAHA VMX12 1997

REAR SHOCK ABSORBER

REAR AXLE GEAR CASE ASSY

1FK461011000 1FK461011000

Not available

BOLT, STUD (5E5)

901161042800

901161036100

£4,86

Unit Price Incl. Tax

BOLT, STUD (26R)

901160842700 901160842700

£4,08

Unit Price Incl. Tax

BOLT, STUD (4H7)

901161024900 901161024900

£11,84

Unit Price Incl. Tax

COLLAR, GUIDE

4YE461530000 4YE461530000

Not available

BRG, CYL-CAL ROLLER 80G KY

933114372900 933114372900

£88,00

Unit Price Incl. Tax

BEARING ASSY

933174151000

2H7461020000

£52,10

Unit Price Incl. Tax

RACE, INNER

2H7461220000 2H7461220000

£25,40

Unit Price Incl. Tax

SHIM, THRUST (0.30T)

1J717537Y030 1J717537Y030

£3,65

Unit Price Incl. Tax

SHIM, THRUST (0.40T)

1J717537Y040 1J717537Y040

£3,65

Unit Price Incl. Tax

SHIM, THRUST (0.50T)

1J717537Y050 1J717537Y050

£3,65

Unit Price Incl. Tax

BRG, R-B 6305RB1 62MM 245G KY

933063053300 933063053300

£170,22

Unit Price Incl. Tax

RETAINER, BEARING

4H7461250000 4H7461250000

£48,98

Unit Price Incl. Tax

O-RING (4H7)

932106042600 932106042600

£6,50

Unit Price Incl. Tax

OIL SEAL (4H7)

931013809800 931013809800

£8,83

Unit Price Incl. Tax

COUPLING, GEAR

4H7461230000

4H7461230100

£214,70

Unit Price Incl. Tax

WASHER, PLATE(3JP)

90201166R500 90201166R500

£14,24

Unit Price Incl. Tax

NUT(3JP)

901791666100 901791666100

£17,92

Unit Price Incl. Tax

HOUSING, BEARING

1FK461520100 1FK461520100

£237,92

Unit Price Incl. Tax

SHIM, RING GEAR (0.30T)

1J746117Y030 1J746117Y030

£4,66

Unit Price Incl. Tax

SHIM, RING GEAR (0.40T)

1J746117Y040 1J746117Y040

£4,66

Unit Price Incl. Tax

SHIM, RING GEAR (0.50T)

1J746117Y050 1J746117Y050

£4,66

Unit Price Incl. Tax

BRG, R-B 16014C2 110MM 433G KY

933160140300 933160140300

£105,08

Unit Price Incl. Tax

WASHER, THRUST

22U461180012 22U461180012

£8,09

Unit Price Incl. Tax

WASHER, THRUST

22U461180014 22U461180014

£8,09

Unit Price Incl. Tax

WASHER, THRUST

22U461180016 22U461180016

£8,09

Unit Price Incl. Tax

WASHER, THRUST

22U461180018 22U461180018

£8,09

Unit Price Incl. Tax

WASHER, THRUST

22U461180020 22U461180020

£8,09

Unit Price Incl. Tax

O-RING(59V)

932115469800 932115469800

£15,31

Unit Price Incl. Tax

NUT(6L2)

953110860000

953330860000

£1,33

Unit Price Incl. Tax

WASHER(6TA)

929010870000

929070870000

£0,52

Unit Price Incl. Tax

BOLT, FLANGE(8AB)

958121005000

958171005000

£7,39

Unit Price Incl. Tax

OIL SEAL (4H7)

931027016700 931027016700

£11,64

Unit Price Incl. Tax

PLUG, STRAIGHT SCREW(3FA)

903401413200 903401413200

£3,38

Unit Price Incl. Tax

GASKET

214111980100 214111980100

£3,36

Unit Price Incl. Tax

BREATHER COMP.

2H7175900000 2H7175900000

£13,40

Unit Price Incl. Tax

PLUG

903401404200

Not available

COVER, HOUSING

1FK461540000 1FK461540000

£41,39

Unit Price Incl. Tax

STOPPER, RING GEAR

1FK461560000 1FK461560000

£23,15

Unit Price Incl. Tax

SHIM, STOPPER

1FK461570015 1FK461570015

£0,52

Unit Price Incl. Tax

SHIM, STOPPER

1FK461570020 1FK461570020

£0,52

Unit Price Incl. Tax

OIL SEAL (30X42X7-1J7)

931013008400 931013008400

£8,32

Unit Price Incl. Tax

SHAFT, DRIVE

1FK461720000 1FK461720000

Not available

OIL SEAL(1FK)

931084301300 931084301300

£27,73

Unit Price Incl. Tax

WASHER, PLATE (4H7)

90201231A200 90201231A200

£3,38

Unit Price Incl. Tax

CIRCLIP (4H7)

934102305600 934102305600

£1,49

Unit Price Incl. Tax

CIRCLIP (537)

934102203900 934102203900

£3,38

Unit Price Incl. Tax

CROSS JOINT COMP.

4X7461800000 4X7461800000

£338,48

Unit Price Incl. Tax

BEARING(2HR)

933112104400

933999992600

£32,34

Unit Price Incl. Tax

SPRING, COMPRESSION (2H7)

905011649100 905011649100

£3,71

Unit Price Incl. Tax

CIRCLIP (4X7)

934402008800 934402008800

£2,64

Unit Price Incl. Tax

NUT, CROWN(2GG)

901761007500 901761007500

£4,13

Unit Price Incl. Tax

YBS67-10 WASHER, SPRING

929031010000

929901010000

£1,31

Unit Price Incl. Tax

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

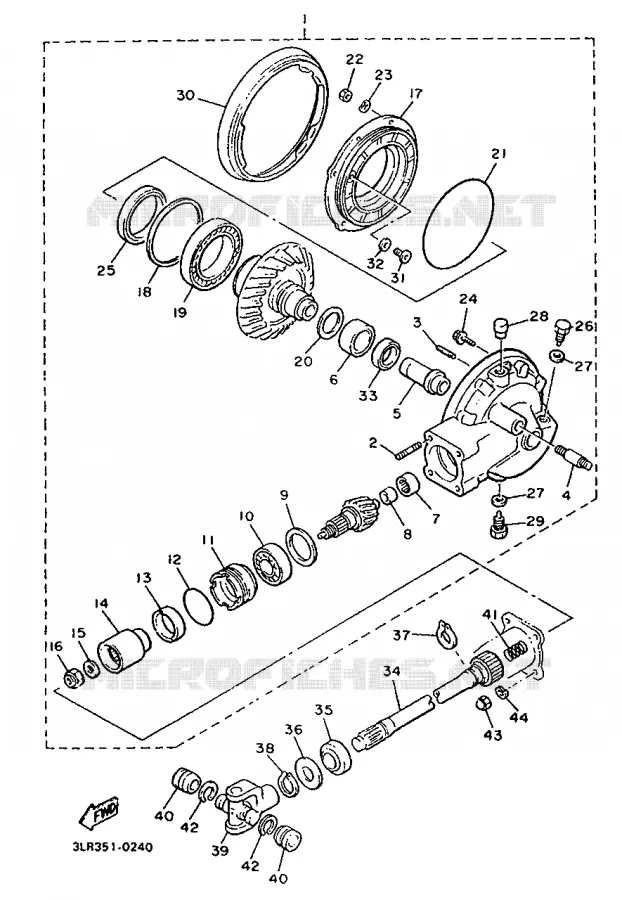

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the FINAL DRIVE SHAFT / GEAR COUPLING of your Yamaha VMX12 of 1997. Let us know if you have any questions.
