FRAME

FENDER FOR YAMAHA XV1100 1997

SIDE COVER

GARDE BOUE AV

1MYY215150JW 1MYY215150JW

Not available

GARDE BOUE AV

1MYY2151H0RL 1MYY2151H0RL

Not available

.JEU D EMBLEMES DE GARDE BOUE JEU D EMBLEMES DE GARDE BOUE

3JK21570A000 3JK21570A000

Not available

.JEU D EMBLEMES DE GARDE BOUE JEU D EMBLEMES DE GARDE BOUE

4PW215700100 4PW215700100

Not available

BOLT, HEXAGON

970270601200

970170601200

£1,19

Unit Price Incl. Tax

WASHER, SPRING

929070610000 929070610000

£0,65

Unit Price Incl. Tax

GARDE BOUE AR

1RMY21611BRL 1RMY21611BRL

Not available

GARDE BOUE AR

1RMY2161R1JW 1RMY2161R1JW

Not available

.JEU D EMBLEMES JEU D EMBLEMES

3JK216759000 3JK216759000

Not available

.JEU D EMBLEMES JEU D EMBLEMES

4PW216750000 4PW216750000

Not available

BOLT, HEXAGON

970270601200

970170601200

£1,19

Unit Price Incl. Tax

WASHER, SPRING

929070610000 929070610000

£0,65

Unit Price Incl. Tax

BOLT, HEXAGON

970270801200 970270801200

£1,15

Unit Price Incl. Tax

WASHER(JN5)

929070810000 929070810000

£0,52

Unit Price Incl. Tax

SUPPORT 1

1RM2164F0000 1RM2164F0000

Not available

SUPPORT 2

1RM2164G0000 1RM2164G0000

Not available

SUPPORT 3

3JK2164H0000 3JK2164H0000

Not available

SUPPORT 4

3JK2164J0000 3JK2164J0000

Not available

POIGNEE 1

42H2164A0200 42H2164A0200

Not available

BOLT, BUTTON

920170602000 920170602000

£1,33

Unit Price Incl. Tax

BOLT, FLANGE

958270601600

958170601600

£0,73

Unit Price Incl. Tax

BOLT, BUTTON HEAD

901490822500

920170803500

£2,93

Unit Price Incl. Tax

BOLT, FLANGE(4BD)

901051021700

958171002200

£2,93

Unit Price Incl. Tax

BUTOIR GARDE-BOUE

42X216290000 42X216290000

Not available

SCREW, PAN

901590612800

985070601400

£0,52

Unit Price Incl. Tax

HELMET HANGER ASSY

4R8213080000

26H213080100

£72,32

Unit Price Incl. Tax

SCREW (4G1)

901490615400 901490615400

£1,49

Unit Price Incl. Tax

SUPPORT ARRIERE COMPLET

1TA2840F0000 1TA2840F0000

Not available

.EMBLEME EMBLEME

42H247860000 42H247860000

Not available

BOLT, SOCKET

913170603500 913170603500

£1,76

Unit Price Incl. Tax

PLUG(42H)

903380616200 903380616200

£9,82

Unit Price Incl. Tax

SUPPORT

4GK216880000 4GK216880000

Not available

SUPPORT 2

4GK216890000 4GK216890000

Not available

SEAL, 2

1JK217350000 1JK217350000

£5,08

Unit Price Incl. Tax

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

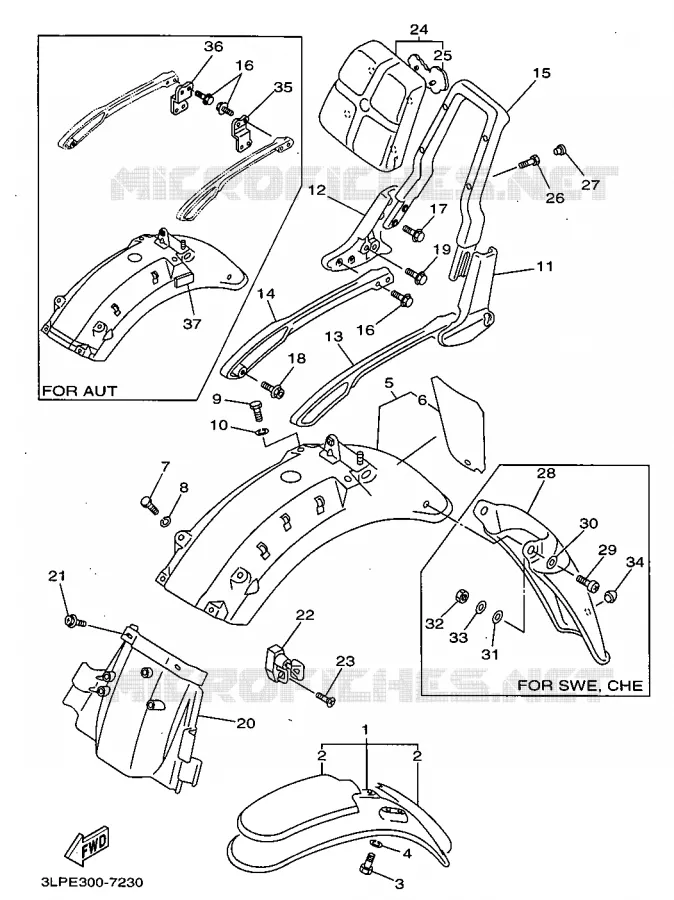

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the FENDER of your Yamaha XV1100 of 1997. Let us know if you have any questions.

Select your Yamaha VIRAGO model from 1997
