HANDLEBAR & CABLES

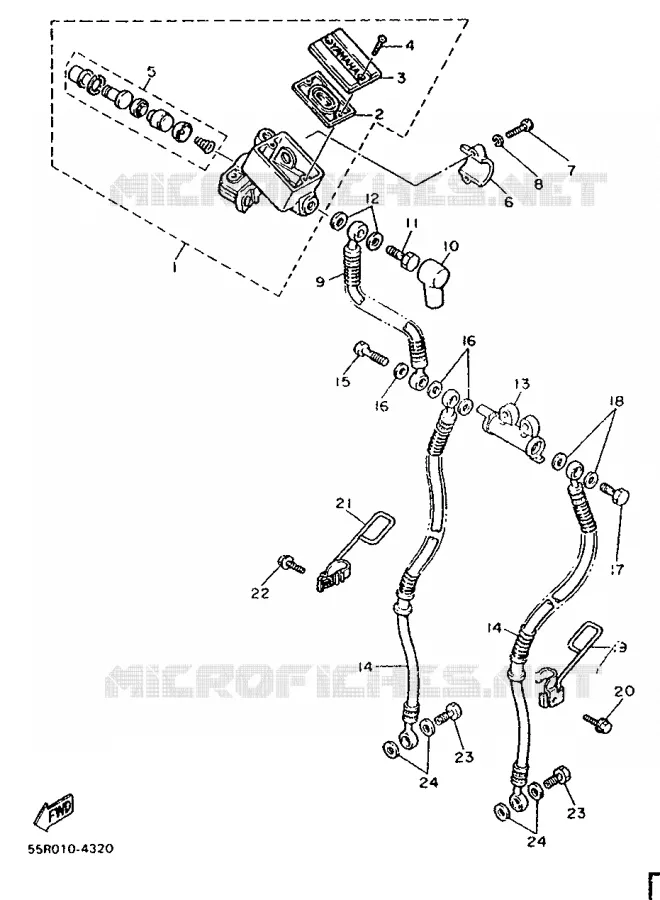

FRONT MASTER CYLINDER FOR YAMAHA XV1100 1991

STAND / FOOTREST

MASTER CYLINDER SUB ASSY

22R258500200

Not available

DIAPHRAGM, RESERVOIR

4K0258540000

4HM258540000

£23,26

Unit Price Incl. Tax

CAP, RESERVOIR

2GV258520000

3GM258520200

£37,06

Unit Price Incl. Tax

SCREW, FLAT

987060401200

987070401200

£1,01

Unit Price Incl. Tax

CYLINDER KIT, MASTER

4K0W00415000 4K0W00415000

£77,86

Unit Price Incl. Tax

BRACKET, MASTER CYLINDER

4L0258670000 4L0258670000

£34,64

Unit Price Incl. Tax

BOLT, HEXAGON

970160602500

970170602500

£1,24

Unit Price Incl. Tax

WASHER, SPRING

929060610000

929070610000

£0,65

Unit Price Incl. Tax

DURITE DE FREIN

42H258720000 42H258720000

Not available

BOOT, MASTER CYLINDER

306258620000 306258620000

£8,71

Unit Price Incl. Tax

BOLT, UNION(3GM)

904011003400

904011015900

£8,71

Unit Price Incl. Tax

WASHER, PLATE

902011011800

90201108J900

£2,64

Unit Price Incl. Tax

JOINT

42H258850000

Not available

DURITE DE FREIN

42H258730000 42H258730000

Not available

BOLT, UNION

904011004400

904011003800

£12,41

Unit Price Incl. Tax

WASHER, PLATE

902011011800

90201108J900

£2,64

Unit Price Incl. Tax

BOLT, UNION(3GM)

904011003400

904011015900

£8,71

Unit Price Incl. Tax

WASHER, PLATE

902011011800

90201108J900

£2,64

Unit Price Incl. Tax

HOLDER, BRAKE HOSE 1

55R258750000 55R258750000

Not available

BOLT, FLANGE(3DM)

950230602000

950240602000

£0,84

Unit Price Incl. Tax

HOLDER, BRAKE HOSE 2

55R258760000 55R258760000

BOLT, FLANGE(3DM)

950230602000

950240602000

£0,84

Unit Price Incl. Tax

BOLT, UNION(3GM)

904011003400

904011015900

£8,71

Unit Price Incl. Tax

WASHER, PLATE

902011011800

90201108J900

£2,64

Unit Price Incl. Tax

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the FRONT MASTER CYLINDER of your Yamaha XV1100 of 1991. Let us know if you have any questions.
