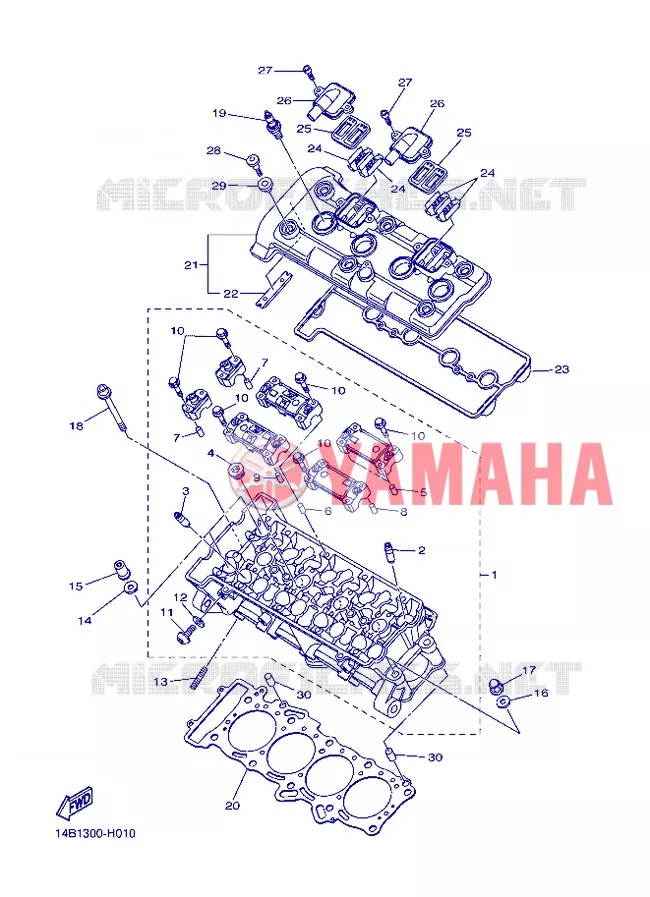

CYLINDER HEAD FOR YAMAHA YZF-R1 2013

CYLINDER

(1) 14B-11101-19

CYLINDER HEAD ASSY

(2) 14B-11133-10

GUIDE, VALVE 1

(3) 4C8-11134-10

GUIDE, VALVE 2

(4) 90340-18002

PLUG, STRAIGHT SCREW

(5) 91808-16023

PIN, DOWEL(3XW)

(6) 91808-16023

PIN, DOWEL(3XW)

(7) 91808-16023

PIN, DOWEL(3XW)

(8) 91808-16023

PIN, DOWEL(3XW)

(9) 91808-16023

PIN, DOWEL(3XW)

(10) 90105-06027

BOLT, WASHER BASED

(11) 90149-06156

SCREW

(12) 90430-06014

GASKET 256113960000

(13) 95612-08625

BOLT, STUD

(14) 90201-10035

WASHER, PLATE

(15) 90179-10029

NUT

(16) 90201-10035

WASHER, PLATE

(17) 90176-10075

NUT, CROWN(2GG)

(18) 90110-06315

BOLT, HEXAGON SOCKET HEAD

(19) 94701-00424

PLUG, SPARK (LMAR9E-J)

(20) 14B-11181-00

GASKET, CYLINDER HEAD 1

(21) 14B-11191-00

COVER, CYLINDER HEAD 1

(22) 5BE122410100

GUIDE, STOPPER 2

(23) 14B-11193-00

GASKET, HEAD COVER 1

(24) 5VY-1482K-00

PLATE

(25) 5SL-14890-10

REED VALVE ASSY

(26) 14B-14899-01

CAP, CASE

(27) 913140602000

BOLT,SOCKET HEAD

(28) 90109-066F0

BOLT(4BP)

(29) 5VY-1111G-00

RUBBER, MOUNT 1

(30) 99530-10114

PIN, DOWEL(3VD)

	Part number	Description	Qty
# 1	14B-11101-19 14B1110119 14B1110119	CYLINDER HEAD ASSY	£3 181,63
# 2	14B-11133-10 14B1113310 14B1113310	GUIDE, VALVE 1	£57,08
# 3	4C8-11134-10 4C81113410 4C81113410	GUIDE, VALVE 2	£47,27
# 4	90340-18002 9034018002 9034018002	PLUG, STRAIGHT SCREW	£6,14
# 5	91808-16023 9180816023 9180816023	PIN, DOWEL(3XW)	£1,20
# 6	91808-16023 9180816023 9180816023	PIN, DOWEL(3XW)	£1,20
# 7	91808-16023 9180816023 9180816023	PIN, DOWEL(3XW)	£1,20
# 8	91808-16023 9180816023 9180816023	PIN, DOWEL(3XW)	£1,20
# 9	91808-16023 9180816023 9180816023	PIN, DOWEL(3XW)	£1,20
# 10	90105-06027 9010506027 9010506027	BOLT, WASHER BASED	£1,18
# 11	90149-06156 9014906156 9014906156	SCREW	£1,39
# 12	90430-06014 9043006014 9043006014	GASKET 256113960000	Not available	£0,00
# 13	95612-08625 9561208625 9561208625	BOLT, STUD	£1,78
# 14	90201-10035 9020110035 9020110035	WASHER, PLATE	£1,20
# 15	90179-10029 9017910029 9017910029	NUT	£9,36
# 16	90201-10035 9020110035 9020110035	WASHER, PLATE	£1,20
# 17	90176-10075 9017610075 9017610075	NUT, CROWN(2GG)	£3,68
# 18	90110-06315 9011006315 9011006315	BOLT, HEXAGON SOCKET HEAD	£5,84
# 19	94701-00424 9470100424 9470100424	PLUG, SPARK (LMAR9E-J)	£23,09
# 20	14B-11181-00 14B1118100 14B1118100	GASKET, CYLINDER HEAD 1	£126,31
# 21	14B-11191-00 14B1119100 14B1119100	COVER, CYLINDER HEAD 1	£273,46
# 22	5BE-12241-00 5BE122410100 5BE1224100	GUIDE, STOPPER 2	£26,75
# 23	14B-11193-00 14B1119300 14B1119300	GASKET, HEAD COVER 1	£67,61
# 24	5VY-1482K-00 5VY1482K00 5VY1482K00	PLATE	£2,66
# 25	5SL-14890-10 5SL1489010 5SL1489010	REED VALVE ASSY	£43,48
# 26	14B-14899-01 14B1489901 14B1489901	CAP, CASE	£23,33
# 27	90110-06175 913140602000 9011006175	BOLT, SOCKET HEAD	£1,44
# 28	90109-066F0 90109066F0 90109066F0	BOLT(4BP)	£5,10
# 29	5VY-1111G-00 5VY1111G00 5VY1111G00	RUBBER, MOUNT 1	£12,10
# 30	99530-10114 9953010114 9953010114	PIN, DOWEL(3VD)	£2,35
