SIDE COVER

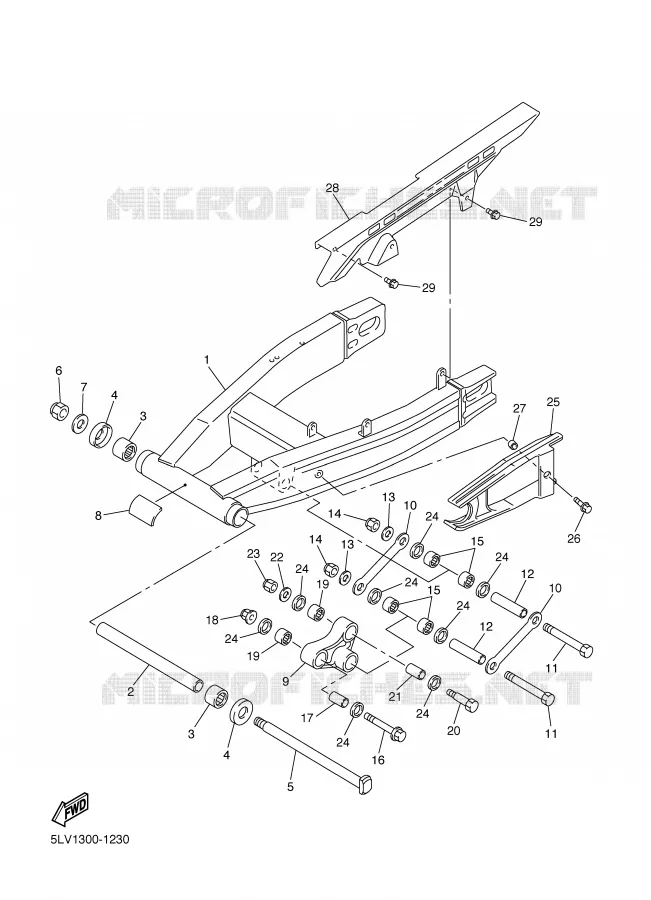

SWINGARM FOR YAMAHA FZS1000 2004

REAR SHOCK ABSORBER

BRAS ARRIERE COMP.

5LV221100000 5LV221100000

Not available

BRAS ARRIERE COMP.

5LV221101000 5LV221101000

Not available

BUSH

3FV221840000 3FV221840000

£118,00

Unit Price Incl. Tax

BRG, CYL-CAL ROLLER 46.8G NT

933154252300 933154252300

£32,02

Unit Price Incl. Tax

COVER, THRUST 1

5JJ221280000 5JJ221280000

£25,78

Unit Price Incl. Tax

SHAFT, PIVOT

3GM221410100 3GM221410100

£73,40

Unit Price Incl. Tax

NUT, SELF-LOCKING

901851810400

901851800900

£17,66

Unit Price Incl. Tax

WASHER, PLATE (5K7)

90201186M400

902011826400

£9,82

Unit Price Incl. Tax

SEAL

4DN212680000 4DN212680000

£11,82

Unit Price Incl. Tax

BRAS DE LIAISON

5LV2217A0000 5LV2217A0000

Not available

ARM 1

5LV2217M0000 5LV2217M0000

Not available

BOLT(4BH)

901011274900 901011274900

£10,39

Unit Price Incl. Tax

COLLAR(4BH)

90387126Y100 90387126Y100

£19,73

Unit Price Incl. Tax

WASHER(6TA)

929071260000 929071260000

£0,52

Unit Price Incl. Tax

NUT, SELF LOCKING (23X)

901851211900 901851211900

£10,94

Unit Price Incl. Tax

BEARING, CYLINDRICAL(39K)

933172174600 933172174600

£35,33

Unit Price Incl. Tax

BOLT, WASHER BASED(1FK)

901051037600 901051037600

£7,00

Unit Price Incl. Tax

COLLAR(1WG)

90387102R400 90387102R400

£10,46

Unit Price Incl. Tax

NUT, SELF-LOCKING(JN5)

956071020000 956071020000

£2,80

Unit Price Incl. Tax

BEARING, CYLINDRICAL(3YL)

933173177100 933173177100

£31,14

Unit Price Incl. Tax

BOLT(1WG)

901011065900 901011065900

£9,82

Unit Price Incl. Tax

COLLAR(3TJ)

90387127W000 90387127W000

£11,87

Unit Price Incl. Tax

WASHER, PLATE(47X)

90201101J100 90201101J100

£0,35

Unit Price Incl. Tax

NUT, U

956171010000 956171010000

£3,98

Unit Price Incl. Tax

OIL SEAL

931091707100 931091707100

£3,61

Unit Price Incl. Tax

SEAL, GUARD

5LV221510100 5LV221510100

£101,06

Unit Price Incl. Tax

BOLT, WITH WASHER(81H)

901190611800 901190611800

£1,49

Unit Price Incl. Tax

COLLAR

903870602200

903870610600

£1,31

Unit Price Incl. Tax

CASE, CHAIN

5LV223110000 5LV223110000

Not available

BOLT, WITH WASHER(55K)

901190600700

901190611700

£1,74

Unit Price Incl. Tax

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the SWINGARM of your Yamaha FZS1000 of 2004. Let us know if you have any questions.
