GEAR SHIFT SHAFT / LEVER

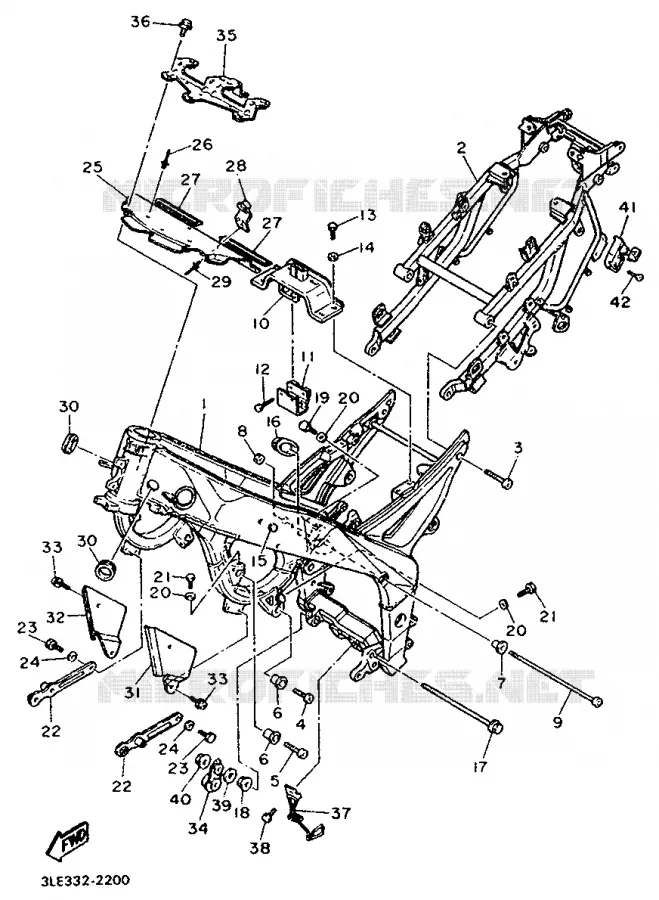

FRAME FOR YAMAHA FZR1000 1995

FENDER

(1) 3GM-21110-60-00

CADRE COMP.

(2) 3GM-21190-50-33

FIXATION

(3) 913171002500

BOLT, SOCKET

(4) 91317-10045-00

BOLT, SOCKET

(5) 913171005000

BOLT, SOCKET

(6) 90387-115V8-00

COLLAR(3GM)

(7) 90387-105V7-00

COLLAR(3GM)

(8) 90179-10590-00

ECROU

(9) 90110-10169-00

BOLT, HEXAGON SOCKET HEAD(3GM)

(10) 3GM-21348-51-00

SUPPRT, MONTAGE DE RESERVOIR

(11) 3GM-21347-00-00

SUPPORT, MONTAGE DE RESERVOIR

(12) 970170603500

BOLT(21W)

(13) 970170601200

BOLT, HEXAGON

(14) 92907-06600-00

WASHER(6TA)

(15) 90338-15202-00

PLUG(2GH)

(16) 2GH-2117T-00-00

COUVERCLE 5

(17) 90105-10716-00

BOLT, WASHER BASED(4FM)

(18) 957041050000

NUT, FLANGE(3BM)

(19) 970170803500

BOLT

(20) 92990-08200-00

YBS66-8 WASHER, PLAIN

(21) 970170803500

BOLT

(22) 3GM-2142K-50-00

SUPPORT

(23) 970170601200

BOLT, HEXAGON

(24) 92907-06600-00

WASHER(6TA)

(25) 3GM-2117M-00-00

COUVERCLE 2

(26) 90267-40076-00

RIVET, BLIND (8K1)

(27) 2GH-15365-00-00

RONDELLE CAOUTCHOUC

(28) 3GM-2117A-00-00

SUPPORT

(29) 902674007600

RIVET, BLIND (8K1)

(30) 90480-35526-00

GROMMET(3GM)

(31) 3GM-2117N-00-00

COUVERCLE 3

(32) 3GM-2117R-00-00

COUVERCLE 4

(33) 90159-06059-00

SCREW, W/WASHER (14T)

(34) 3GM-21446-03-00

SUPPORT, POT D ECHAPPEMENT 2

(35) 3GM-21359-00-00

SUPPORT, BOBINE

(36) 90119-06114-00

BOLT, WITH WASHER(55K)

(37) 3GM-21149-00-00

SUPPORT, BOITIER A BATTERIE

(38) 958170601000

BOLT, FLANGE

(39) 90201-101J1-00

WASHER, PLATE(47X)

(40) 901791039400

NUT (22F)

(41) 26H213080100

HELMET HANGER ASSY

(42) 90149-06150-00

SCREW (3H1)

	Part number	Description	Qty
# 1	3GM-21110-60-00 3GM211106000 3GM211106000	CADRE COMP.	Not available	£0,00
# 2	3GM-21190-50-33 3GM211905033 3GM211905033	FIXATION	Not available	£0,00
# 3	90110-10191-00 913171002500 901101019100	BOLT, SOCKET	£3,30
# 4	91317-10045-00 913171004500 913171004500	BOLT, SOCKET	£1,96
# 5	90110-10168-00 901101016800	BOLT, SOCKET	Not available	£0,00
# 6	90387-115V8-00 90387115V800 90387115V800	COLLAR(3GM)	Not available	£0,00
# 7	90387-105V7-00 90387105V700 90387105V700	COLLAR(3GM)	Not available	£0,00
# 8	90179-10590-00 901791059000 901791059000	ECROU	Not available	£0,00
# 9	90110-10169-00 901101016900 901101016900	BOLT, HEXAGON SOCKET HEAD(3GM)	Not available	£0,00
# 10	3GM-21348-51-00 3GM213485100 3GM213485100	SUPPRT, MONTAGE DE RESERVOIR	Not available	£0,00
# 11	3GM-21347-00-00 3GM213470000 3GM213470000	SUPPORT, MONTAGE DE RESERVOIR	Not available	£0,00
# 12	97007-06035-00 970170603500 970070603500	BOLT(21W)	£2,35
# 13	97007-06012-00 970170601200 970070601200	BOLT, HEXAGON	£1,06
# 14	92907-06600-00 929070660000 929070660000	WASHER(6TA)	£0,48
# 15	90338-15202-00 903381520200 903381520200	PLUG(2GH)	£4,15
# 16	2GH-2117T-00-00 2GH2117T0000 2GH2117T0000	COUVERCLE 5	Not available	£0,00
# 17	90105-10716-00 901051071600 901051071600	BOLT, WASHER BASED(4FM)	Not available	£0,00
# 18	90179-10247-00 957041050000 901791024700	NUT, FLANGE(3BM)	£1,20
# 19	97007-08035-00 970170803500 970070803500	BOLT	£2,09
# 20	92990-08200-00 929900820000 929900820000	YBS66-8 WASHER, PLAIN	£0,90
# 21	97027-08035-00 970170803500 970270803500	BOLT	£2,09
# 22	3GM-2142K-50-00 3GM2142K5000 3GM2142K5000	SUPPORT	Not available	£0,00
# 23	97007-06012-00 970170601200 970070601200	BOLT, HEXAGON	£1,06
# 24	92907-06600-00 929070660000 929070660000	WASHER(6TA)	£0,48
# 25	3GM-2117M-00-00 3GM2117M0000 3GM2117M0000	COUVERCLE 2	Not available	£0,00
# 26	90267-40076-00 902674007600 902674007600	RIVET, BLIND (8K1)	£1,37
# 27	2GH-15365-00-00 2GH153650000 2GH153650000	RONDELLE CAOUTCHOUC	Not available	£0,00
# 28	3GM-2117A-00-00 3GM2117A0000 3GM2117A0000	SUPPORT	Not available	£0,00
# 29	90267-40054-00 902674007600 902674005400	RIVET, BLIND (8K1)	£1,37
# 30	90480-35526-00 904803552600 904803552600	GROMMET(3GM)	£5,50
# 31	3GM-2117N-00-00 3GM2117N0000 3GM2117N0000	COUVERCLE 3	Not available	£0,00
# 32	3GM-2117R-00-00 3GM2117R0000 3GM2117R0000	COUVERCLE 4	Not available	£0,00
# 33	90159-06059-00 901590605900 901590605900	SCREW, W/WASHER (14T)	£0,48
# 34	3GM-21446-03-00 3GM214460300 3GM214460300	SUPPORT, POT D ECHAPPEMENT 2	Not available	£0,00
# 35	3GM-21359-00-00 3GM213590000 3GM213590000	SUPPORT, BOBINE	Not available	£0,00
# 36	90119-06114-00 901190611400 901190611400	BOLT, WITH WASHER(55K)	£0,71
# 37	3GM-21149-00-00 3GM211490000 3GM211490000	SUPPORT, BOITIER A BATTERIE	Not available	£0,00
# 38	95807-06010-00 958170601000 958070601000	BOLT, FLANGE	£0,48
# 39	90201-101J1-00 90201101J100 90201101J100	WASHER, PLATE(47X)	£0,31
# 40	95707-10500-00 901791039400 957071050000	NUT (22F)	£2,90
# 41	26H-21308-00-00 26H213080100 26H213080000	HELMET HANGER ASSY	£64,48
# 42	90149-06150-00 901490615000 901490615000	SCREW (3H1)	£2,09

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the FRAME of your Yamaha FZR1000 of 1995. Let us know if you have any questions.
