SWINGARM / SHOCK ABSORBER

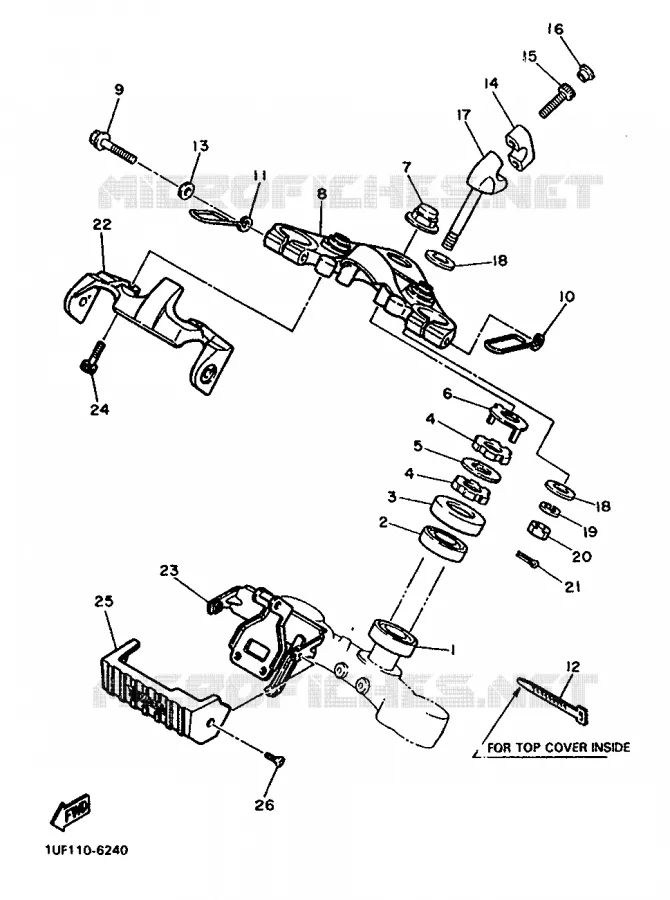

STEERING FOR YAMAHA FZX750 1993

FRONT FORK

(1) 93332-00008-00

BRG,CYL-CAL ROLLER 131G KY

(2) 93332-00001-00

BRG, TAPERED ROLLER (409)

(3) 1J7-23415-00-00

COVER, BALL RACE 1

(4) 901792500400

NUT

(5) 90209-26142-00

RONDELLE

(6) 26H-23418-01-00

WASHER, SPECIAL

(7) 90176-22050-00

NUT, CROWN(42X)

(8) 1UF-W2341-00-38

CROWN, HANDLE

(9) 950240805000

BOLT, FLANGE(3XF)

(10) 42X-23317-01-00

SUPPORT DE CABLE

(11) 1UF-23317-01-00

SUPPORT DE CABLE

(12) 437-83936-01-00

BAND, SWITCH CORD

(13) 92990-08600-00

WASHER, PLAIN (663)

(14) 4H7234410138

HOLDER, HANDLE UPPER

(15) 913140803000

BOLT,SOCKET

(16) 90338-08163-00

PLUG(42X)

(17) 42X234420138

HOLDER, HANDLE LOWER

(18) 90201-100A1-00

WASHER, PLATE (3J6)

(19) 929901010000

YBS67-10 WASHER, SPRING

(20) 953801070000

NUT (682)

(21) 90468-12006-00

CLIP 136253750000

(22) 1UF-23174-00-38

SUPPORT, PHARE

(23) 1UF-2331A-00-00

SUPPORT

(24) 913170802500

BOLT, SOCKET

(25) 1UF-23122-01-00

COUVERCLE, EXTERNE 1

(26) 987070501200

SCREW, FLAT

	Part number	Description	Qty
# 1	93332-00008-00 933320000800 933320000800	BRG, CYL-CAL ROLLER 131G KY	£64,22
# 2	93332-00001-00 933320000100 933320000100	BRG, TAPERED ROLLER (409)	£61,45
# 3	1J7-23415-00-00 1J7234150000 1J7234150000	COVER, BALL RACE 1	£2,90
# 4	90179-25033-00 901792500400 901792503300	NUT	£4,15
# 5	90209-26142-00 902092614200 902092614200	RONDELLE	Not available	£0,00
# 6	26H-23418-01-00 26H234180100 26H234180100	WASHER, SPECIAL	£6,24
# 7	90176-22050-00 901762205000 901762205000	NUT, CROWN(42X)	£18,02
# 8	1UF-W2341-00-38 1UFW23410038 1UFW23410038	CROWN, HANDLE	Not available	£0,00
# 9	95023-08050-00 950240805000 950230805000	BOLT, FLANGE(3XF)	£1,78
# 10	42X-23317-01-00 42X233170100 42X233170100	SUPPORT DE CABLE	Not available	£0,00
# 11	1UF-23317-01-00 1UF233170100 1UF233170100	SUPPORT DE CABLE	Not available	£0,00
# 12	437-83936-01-00 437839360100 437839360100	BAND, SWITCH CORD	£3,52
# 13	92990-08600-00 929900860000 929900860000	WASHER, PLAIN (663)	£0,48
# 14	4H7-23441-00-38 4H7234410138 4H7234410038	HOLDER, HANDLE UPPER	£25,69
# 15	91311-08030-00 913140803000 913110803000	BOLT, SOCKET	£1,69
# 16	90338-08163-00 903380816300 903380816300	PLUG(42X)	£3,55
# 17	42X-23442-00-38 42X234420138 42X234420038	HOLDER, HANDLE LOWER	£62,23
# 18	90201-100A1-00 90201100A100 90201100A100	WASHER, PLATE (3J6)	£2,75
# 19	92901-10100-00 929901010000 929011010000	YBS67-10 WASHER, SPRING	£1,18
# 20	95303-10700-00 953801070000 953031070000	NUT (682)	£5,41
# 21	90468-12006-00 904681200600 904681200600	CLIP 136253750000	£1,86
# 22	1UF-23174-00-38 1UF231740038 1UF231740038	SUPPORT, PHARE	Not available	£0,00
# 23	1UF-2331A-00-00 1UF2331A0000 1UF2331A0000	SUPPORT	Not available	£0,00
# 24	91316-08025-00 913170802500 913160802500	BOLT, SOCKET	£1,69
# 25	1UF-23122-01-00 1UF231220100 1UF231220100	COUVERCLE, EXTERNE 1	Not available	£0,00
# 26	98706-05012-00 987070501200 987060501200	SCREW, FLAT	£0,48

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the STEERING of your Yamaha FZX750 of 1993. Let us know if you have any questions.
