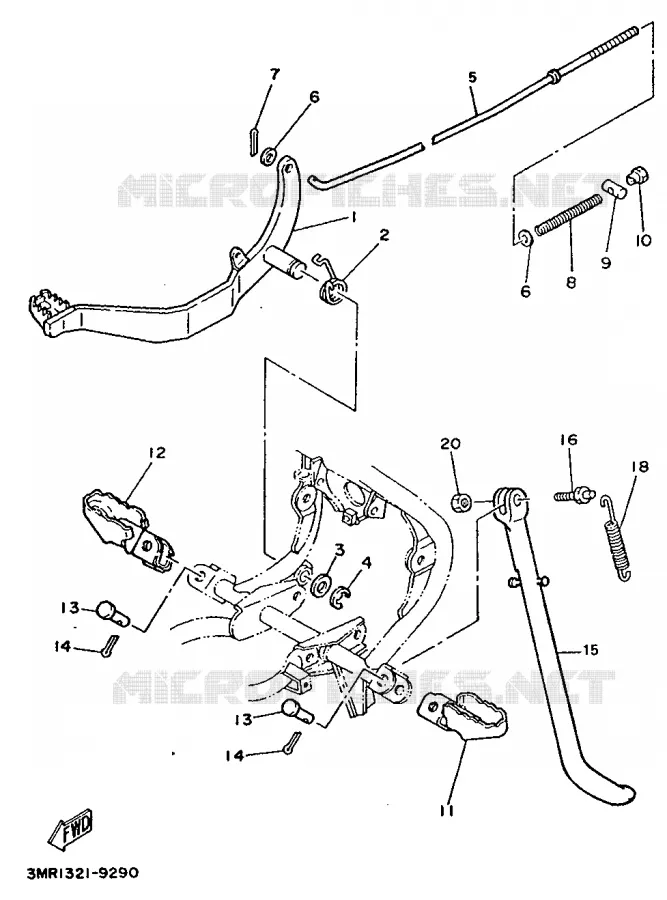

STAND / FOOTREST FOR YAMAHA DT50R 1989

COVER 1

(1) 20L-F7211-00-00

PEDALE, FREIN

(2) 90508-32354-00

SPRING, TENSION (2A6)

(3) 90201-14813-00

RONDELLE, PLATE

(4) 93430-10803-00

CIRCLIP

(5) 3MP-F7231-00-00

TIGE DE FREIN

(6) 90201061A500

WASHER, PLATE (4H7)

(7) 914902001500

PIN, COTTER (648)

(8) 90501-10245-00

SPRING, (180-27236-00)

(9) 90249-12008-00

PIN 1562723700

(10) 901790641100

NUT (25K)

(11) 20L-F7411-00-00

REPOSE-PIEDS 1

(12) 20L-F7421-00-00

REPOSE-PIEDS 2

(13) 91701-08038-00

PIN, CLEVIS (2A6)

(14) 914902001500

PIN, COTTER (648)

(15) 1NN-F7311-00-00

SIDE STAND ASSY

(16) 90109-08829-00

PULLER, ROTOR

(17) 90387-08884-00

COLLAR

(18) 90506-20041-00

SPRING (109-27216-00)

(19) 5TR-F7315-00-00

BIELLETTE, BEQUILLE LATERALE

(20) 953800870000

NUT(661)

	Part number	Description	Qty
# 1	20L-F7211-00-00 20LF72110000 20LF72110000	PEDALE, FREIN	Not available	£0,00
# 2	90508-32354-00 905083235400 905083235400	SPRING, TENSION (2A6)	£4,15
# 3	90201-14813-00 902011481300 902011481300	RONDELLE, PLATE	Not available	£0,00
# 4	93430-10803-00 934301080300 934301080300	CIRCLIP	Not available	£0,00
# 5	3MP-F7231-00-00 3MPF72310000 3MPF72310000	TIGE DE FREIN	Not available	£0,00
# 6	92901-06600-00 90201061A500 929010660000	WASHER, PLATE (4H7)	£1,32
# 7	91401-20012-00 914902001500 914012001200	PIN, COTTER (648)	£1,69
# 8	90501-10245-00 905011024500 905011024500	SPRING, (180-27236-00)	£2,09
# 9	90249-12008-00 902491200800 902491200800	PIN 1562723700	£3,01
# 10	90179-06176-00 901790641100 901790617600	NUT (25K)	£1,18
# 11	20L-F7411-00-00 20LF74110000 20LF74110000	REPOSE-PIEDS 1	Not available	£0,00
# 12	20L-F7421-00-00 20LF74210000 20LF74210000	REPOSE-PIEDS 2	Not available	£0,00
# 13	91701-08038-00 917010803800 917010803800	PIN, CLEVIS (2A6)	£4,15
# 14	91401-20015-00 914902001500 914012001500	PIN, COTTER (648)	£1,69
# 15	1NN-F7311-00-00 1NNF73110000 1NNF73110000	SIDE STAND ASSY	Not available	£0,00
# 16	90109-08829-00 901090882900 901090882900	PULLER, ROTOR	Not available	£0,00
# 17	90387-08884-00 903870888400 903870888400	COLLAR	£8,87
# 18	90506-20041-00 905062004100 905062004100	SPRING (109-27216-00)	£3,55
# 19	5TR-F7315-00-00 5TRF73150000 5TRF73150000	BIELLETTE, BEQUILLE LATERALE	Not available	£0,00
# 20	95301-08700-00 953800870000 953010870000	NUT(661)	£1,18

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the STAND / FOOTREST of your Yamaha DT50R of 1989. Let us know if you have any questions.
